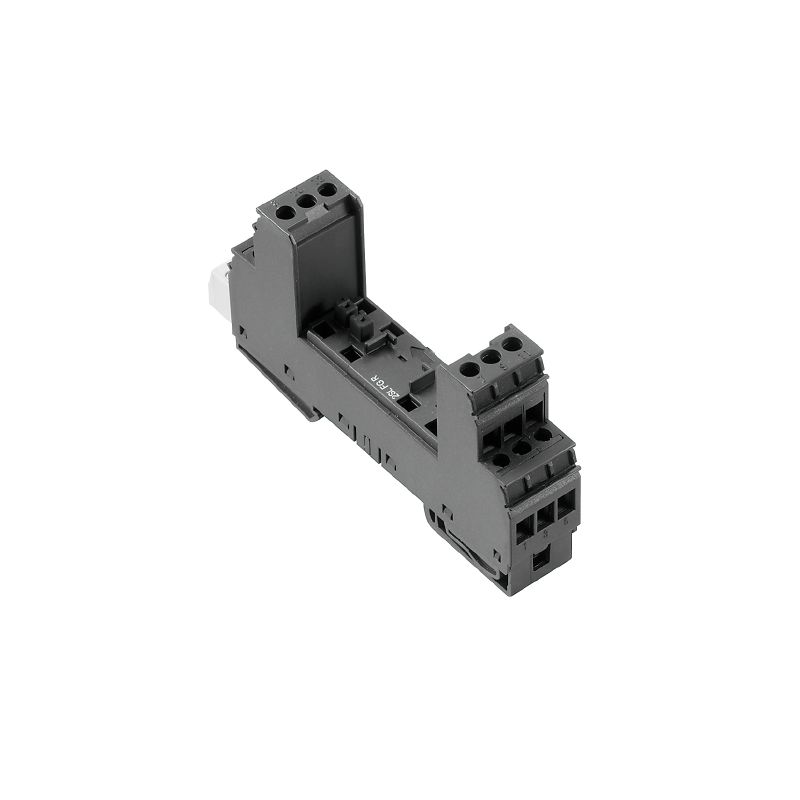

VSPC BASE 2SL FG R
SKU: 8951780000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A shielded plug for up to two floating ground-powered paired wires can be inserted into the base element.
A concurrent sparkover gap to high impedance earth is created between the mounting rail (earth) and the reference potential (ground) of the plug's protection switch upon base unit installation.
Featuring a feature for remote monitoring.
Mechanical coding of the protected plug's base element based on the rated voltage and switching type.
The initial insertion of a protected plug codes the base unit.
Two floating ground-powered paired wires with indirect earthing are provided to the base element via a shielded connector.
With the option of remote observation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Surge protection, Flange-mounted housing.
Depth: 69 mm.
Height: 98 mm.
Width: 17.8 mm.
Storage temperature: -40 °C...80 °C.
Operating temperature: -40 °C...70.
Humidity: 5...96 %.
Connection type: Screw connection.
Cross-section for connected wire, solid core, max.: 1.5 mm².
Cross-section for connected wire, solid core, min.: 0.5 mm².
Color: black.
Design: Terminal miscellaneous.
No Optical function display.
Protection degree: IP20.
Rail: TS 35 TS 35 x 7.5.
Segment: Measurement - Monitoring - Setting.
UL 94 flammability rating: V-0.
