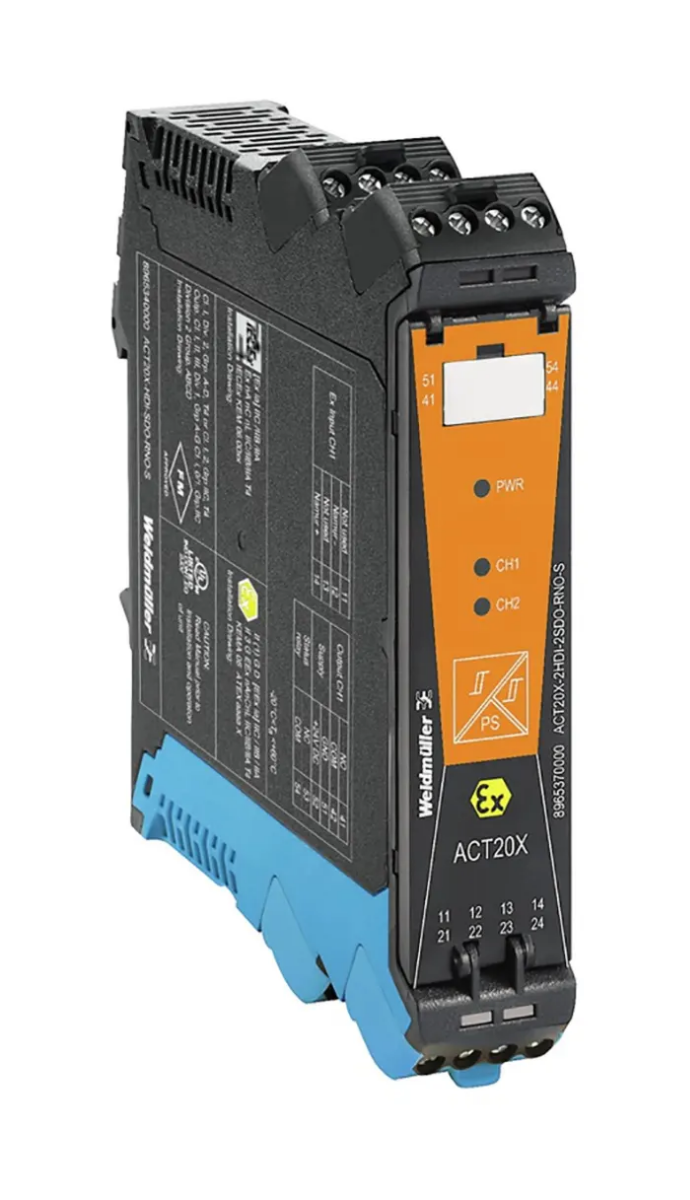

ACT20X-HDI-SDO-RNO-S
SKU: 8965340000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
1-channel isolating switch amplifiers in 22.5 mm width with an external power supply,to transmit and isolate Namur sensor signals from Ex zones 0,1,2 into the safe zone.
On the output side there is a potential-free relay contact with closing function and an alarm contact for status/error messages.
The component can be configured using standard FDT/DTM software.
Add-on housing for TS35 DIN rail installation.
Dimensions: L/W/H 119.2/ 22.5/ 113.6
Screw connection/ nominal cross-section 2.5 mm2
Protection degree: IP20
Input NAMUR sensor according to EN 60947 8 VDC / 8 mA sensor power supply 0 to 5 kHz input frequency wire-break detection.
Output Relay 1 NO contact 250 VAC / 30 VDC @ 2A safe zone 32 VAC @ 0.5 A/ 32 VDC @ 1 A zone 2
Alarm output relay 1 NO contact 250 VAC / 30 VDC @ 2A safe zone 32 VAC @ 0.5 A/ 32 VDC @ 1 A zone 2.
Auxiliary power 19 to 31.2 VDC.
Power loss approx. 1.8 W
Ambient
Temperature range -20 °C to +60 °C
Secure isolation EN 61010, 3-way isolation up to 2.6 kV AC/DC of all circuits against each other
Working voltage 300 V AC/DC at overvoltage category II and pollution degree 2
Approvals cULus, ATEX IECEX, FM
ATEX marking II 3 G ExnA NC IIC T4
ATEX characteristic data U0 = 10, 6 V DC I0 = 12 mA DC P0 = 32 W
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: EX signal isolating converter, Ex-input: NAMUR sensor/switch, Safe-output: relay, NO contact, 1-channel.
Depth: 113.6 mm.
Height: 119.2 mm.
Width: 22.5 mm.
Storage temperature: -20 °C...85 °C.
Operating temperature: -20 °C...60 °C.
Humidity: 5...96 % (no condensation).
Mounting position: horizontal or vertical.
Rail: TS 35.
Type of mounting: Snap mounting support rail.
Configuration: With FDT/DTM software, Requires configuration adapter 8978580000 CBX200 USB.
NAMUR supply: 8 V DC / 8 mA.
Power consumption: ≤ 1.3 W.
Protection degree: IP20.
Type of connection: Screw connection.
Voltage supply: 19.2…31.2 V DC.
Rated voltage: 300 V.
Insulation voltage: 2.6 kV (input / output).
Input EX:
Input frequency: <20 Hz.
Input resistance: 1 KΩ.
Output signal in case of wire break: <0.1 mA, > 6.5 mA (in case of wire break).
Pulse duration: > 0.1 Ms.
Resistance: RP = 750 Ω / RS = 15kΩ.
Sensor: NAMUR sensor, according to EN60947-5-6, switch with or without RS, RP.
Sensor supply: 8 V DC / 8 mA.
Trigger level high: > 2.1 mA.
Trigger level low: <1.2 mA.
Type: intrinsically safe circuit.
Digital output:
Continuous current: ≤ 2 An AC/DC (safe area, Zone 2 area).
Function: Output = input, direct or inverse (configurable).
Max. switching frequency: 20 Hz.
Nominal switching voltage: ≤ 250 V AC / 30 V DC (safe area)
≤ 32 V AC / 32 V DC (zone 2).
Switching capacity: 500 VA / 60 W (safe area), 16 VA / 60 W (zone 2).
Type: Relay, 1 NO, Switching frequency 20 Hz.
Alarm output:
Alarm function: Line interruption at the input, short circuit at input, No supply voltage, Device error.
Continuous current: ≤ 0.5 An AC / 0.3 A DC (safe zone), ≤ 0,5 An AC / 1 A DC (zone 2).
Nominal switching voltage: ≤ 125 V AC / 110 V DC (safe area) ≤ 32 V AC / 32 V DC (zone 2).
Power rating: ≤ 62.5 VA / 32 W (safe area) ≤ 16 VA / 32 W (Zone 2).
Type: Status relay, 1 NC (voltage-free).
