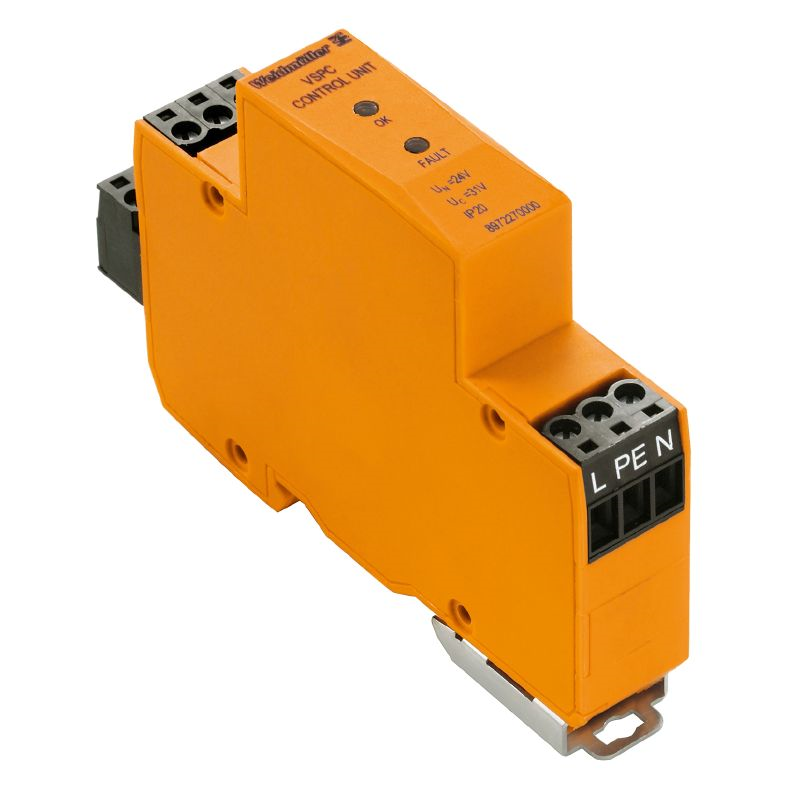

VSPC CONTROL UNIT 24VDC
SKU: 8972270000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Up to ten VSPC R shielded plugs are being evaluated.
Has a power source and a voltage-free signaling interface.
This provides the supply power and can be coupled with up to ten base modules and optional remote monitoring.
The voltage-free signaling contact is activated in the event of a protection module failure.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Version: Surge protection for instrumentation and control, with warning function / function indicator.
Depth: 71.5 mm.
Height: 102 mm.
Width: 18 mm.
Storage temperature: -40 °C...80 °C.
Operating temperature: -40 °C...70.
Humidity: 5...96 %.
Color: orange.
Design: Installation housing.
Protection degree: IP20.
Rail: TS 35, TS 35 x 7.5.
Segment: Measurement - Monitoring – Setting.
Start-up time after fault correction: 60s.
Rated data IEC/EN:
Max. continuous voltage, Uc (DC): 30 V.
Number of poles: 1.
Operating current, max: 50mA.
Operating voltage: 24V.
Rated current: 50 Ma.
Rated voltage (DC): 24 V.
No Signaling contact.
Standards: DIN EN 50178.
Diagnosis:
Operating status: LED green.
Status indication: Green LED.
Wire break detection: Red/green LED, flashing.
Alarm output:
Switching current: 1A.
Switching voltage: 250 V AC.
Type: 1 CO contact.
