CBX200 USB
SKU: 8978580000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

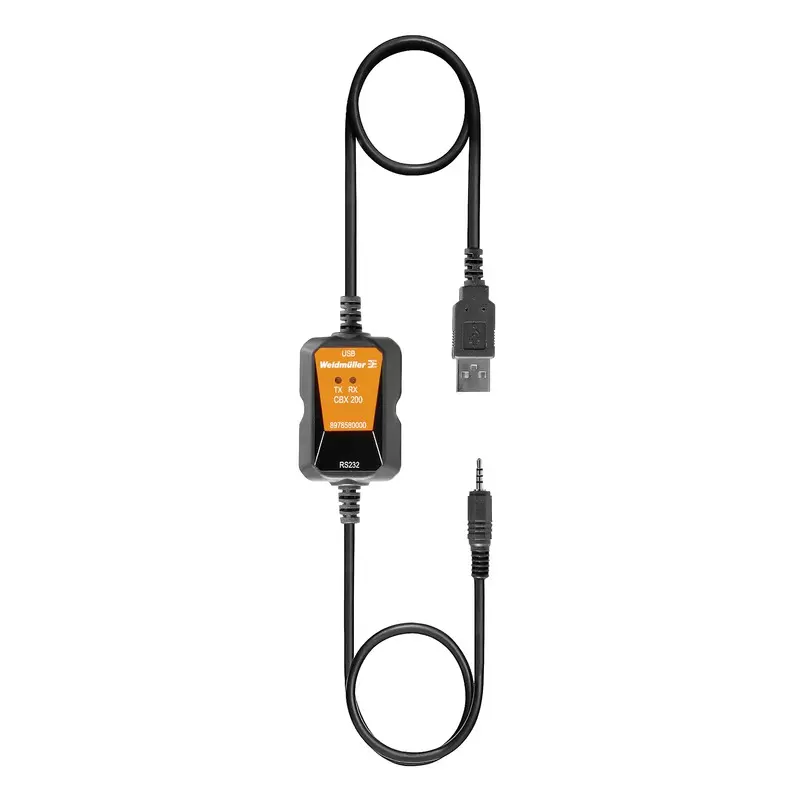

The CBX200 USB is a galvanically insulated USB 2.0/RS232 interface converter.
It has extra functionalities for controlling and supplying connected RS232 devices.
The signal converter WAVE TTA and the product family ACT20 can be configured with the CBX200 USB.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Storage temperature: -25 °C...70 °C.
Operating temperature: -10 °C...50 °C.
Humidity: 10…90 %, no condensation.
Protection degree: IP40.
Insulation voltage: 2.5 kV (input / output).
Type of connection: Screw connection.
Input:
Input current: ≤ 100 mA.
Input resistance: 22 kΩ.
Input voltage: 1.6…5.6 V.
Type: USB 2.0 (USB type A plug).
Output:
Activation signal: 9…15 V typ. 12 V / 4 mA.
Level on interfaces: 1.8…5.6 V (automatically adapted).
Load impedance current: ≤ 300 Ω.
Output voltage, note: 3.3 V regulated.
Type: RS232 (4-pole 2.5-mm jack plug).
