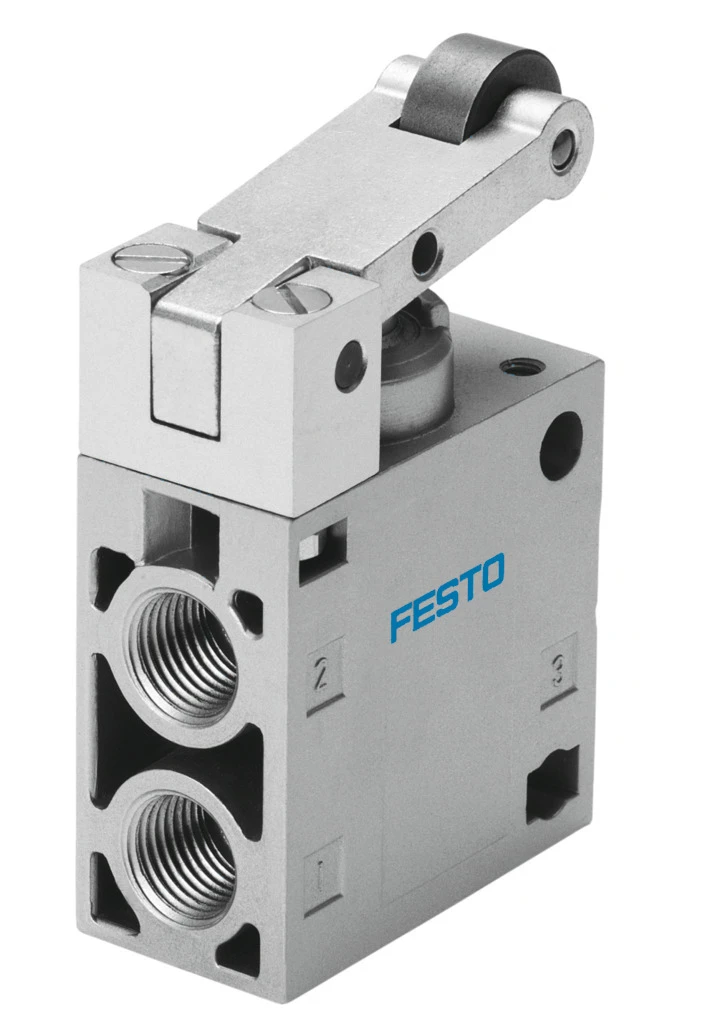

Roller lever valve, R-3-1/4-B

Specifications • Valves, mechanically actuated, Roller lever valve • Valve function 3/2-way, closed, monostable • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 600 l/min • Pneumatic working port G1/4 • Operating pressure -0.095 MPa ... 1 MPa • Operating pressure -0.95 bar ... 10 bar • Design Piston seat • Nominal size 7 mm • Type of piloting Direct • Symbol 00991097 • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • LABS (PWIS) conformity VDMA24364-B1/B2-L
