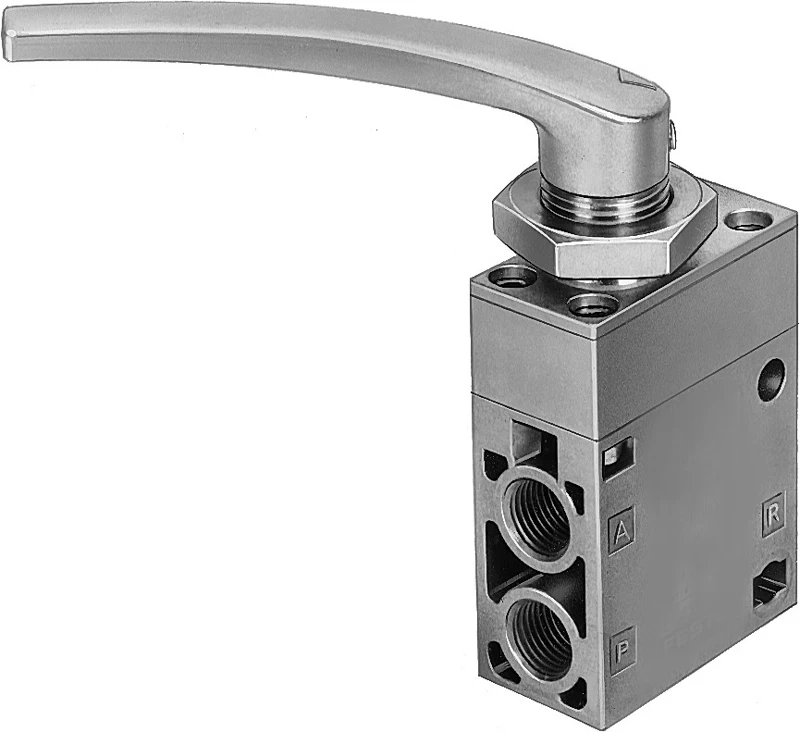

Hand lever valve, H-3-1/4-B

Specifications • Manually operated valves, Hand lever valve • Valve function 3/2 double solenoid • Standard nominal flow rate (standardised to DIN 1343) 600 l/min • Pneumatic working port G1/4 • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Nominal size 7 mm • Type of piloting Direct • Symbol 00991278 • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Actuating torque 0.5 Nm • Product weight 320 g
