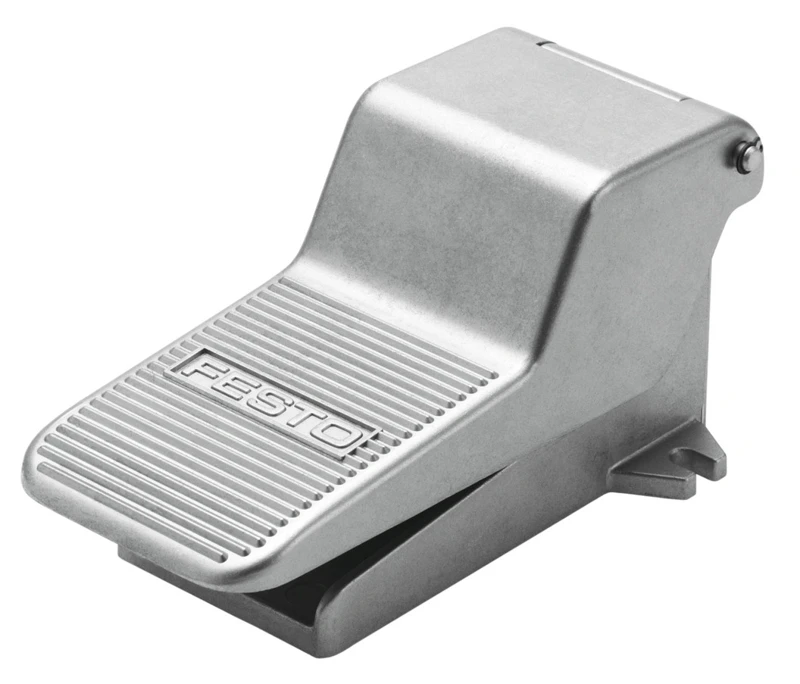

Foot valve, F-5-1/4-B

Specifications • Manually operated valves, Foot valve • Valve function 5/2-way, monostable • Type of actuation Manual • Standard nominal flow rate (standardised to DIN 1343) 550 l/min • Pneumatic working port G1/4 • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Type of reset Mechanical spring • Nominal size 7 mm • Mounting position optional • Type of piloting Direct • Flow direction Non-reversible • Symbol 00991333 • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
