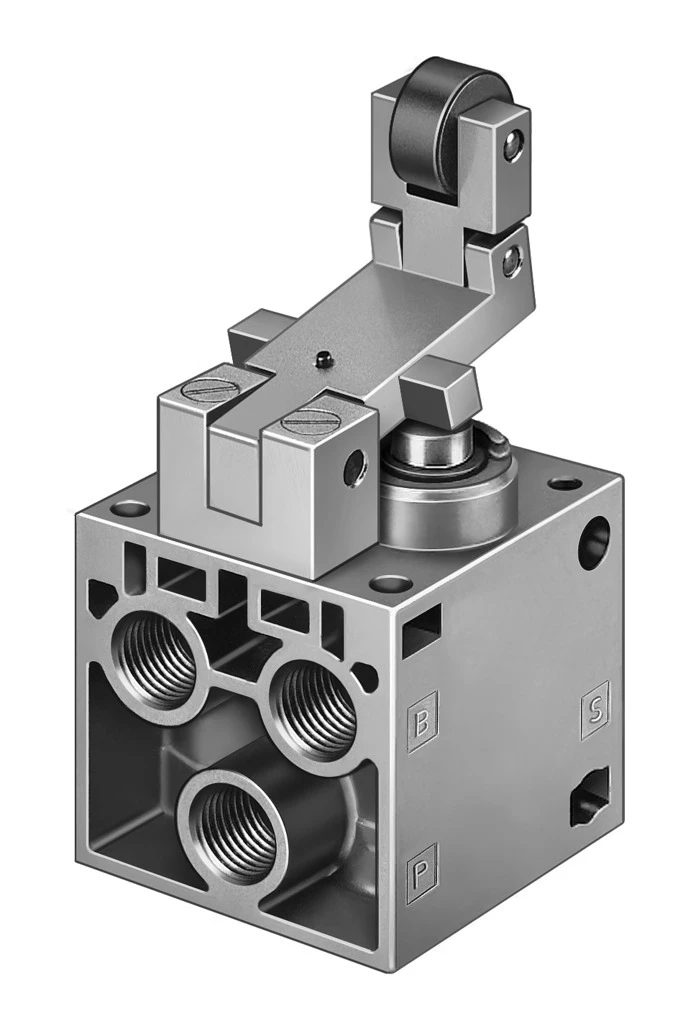

Toggle lever valve with idle return, L-5-1/4-B

Specifications • Valves, mechanically actuated, Toggle lever valve with idle return • Valve function 5/2-way, monostable • Type of actuation Mechanical • Standard nominal flow rate (standardised to DIN 1343) 550 l/min • Pneumatic working port G1/4 • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Nominal size 7 mm • Type of piloting Direct • Symbol 00991718 • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C
