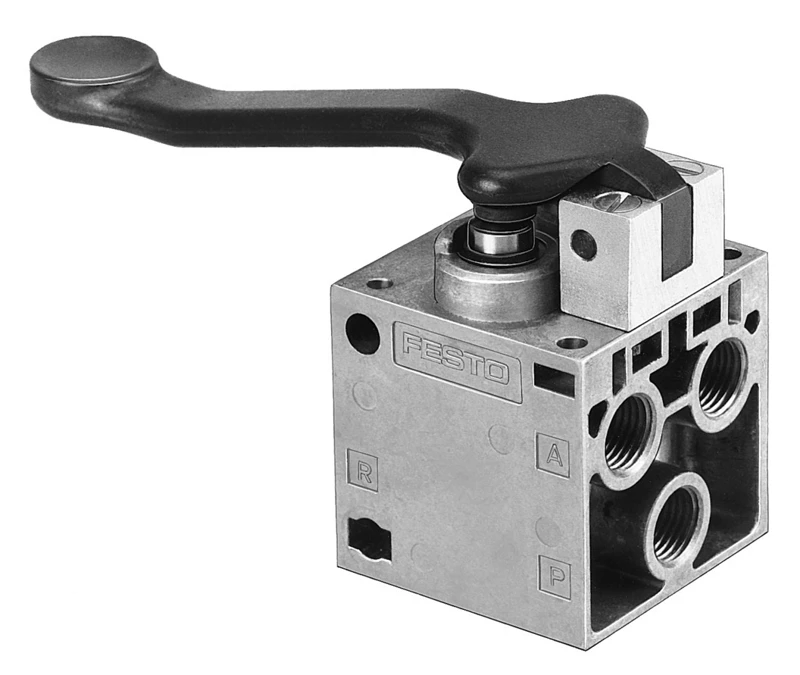

Finger lever valve, TH-5-1/4-B

Specifications • Manually operated valves, Finger lever valve • Valve function 5/2-way, monostable • Standard nominal flow rate (standardised to DIN 1343) 550 l/min • Pneumatic working port G1/4 • Operating pressure -0.95 bar ... 10 bar • Design Poppet seat • Nominal size 7 mm • Type of piloting Direct • Symbol 00991340 • Explosion protection Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) • LABS (PWIS) conformity VDMA24364-B1/B2-L • Ambient temperature -10 °C ... 60 °C • Actuating force 34 N • Product weight 320 g
