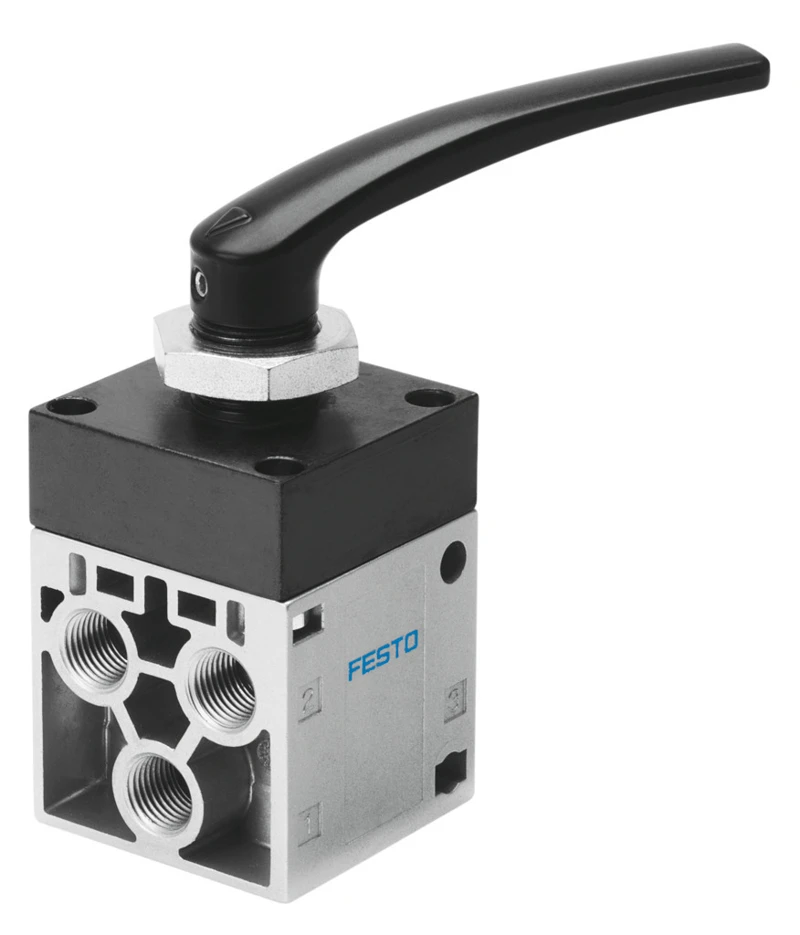

Hand lever valve, H-5-1/4-B
SKU: 8995
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Specifications
• Manually operated valves, Hand lever valve
• Valve function 5/2 double solenoid
• Standard nominal flow rate (standardised to DIN 1343) 550 l/min
• Pneumatic working port G1/4
• Operating pressure -0.95 bar ... 10 bar
• Design Poppet seat
• Nominal size 7 mm
• Type of piloting Direct
• Symbol 00991700
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Actuating force 2 N
• Product weight 510 g
Buy currently uses Select Automation shop pricing and checkout.
Specifications
• Manually operated valves, Hand lever valve
• Valve function 5/2 double solenoid
• Standard nominal flow rate (standardised to DIN 1343) 550 l/min
• Pneumatic working port G1/4
• Operating pressure -0.95 bar ... 10 bar
• Design Poppet seat
• Nominal size 7 mm
• Type of piloting Direct
• Symbol 00991700
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Ambient temperature -10 °C ... 60 °C
• Actuating force 2 N
• Product weight 510 g
