Continuous light elements, green 12 V-230 V
SKU: 8WD4200-1AC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

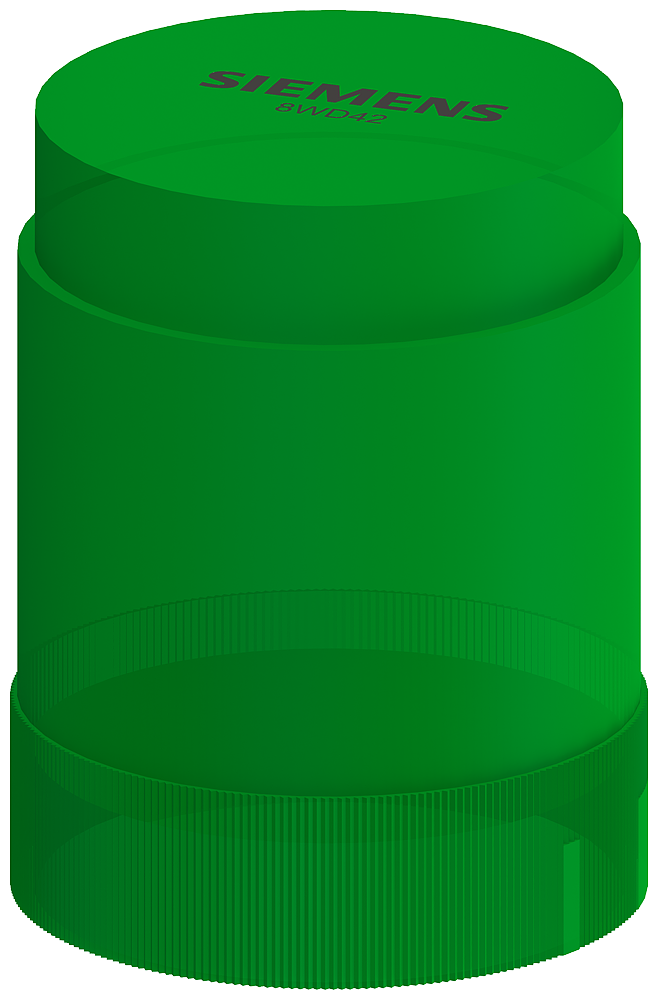

Continuous light element, green, 12-230 V AC/DC, 50 mm diameter, base BA 15d without light element.
The product brand is called SIRIUS.
Product designation: Continuous light element.
The design of the product without light source.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
at DC rated value: 12 ... 230 V.
At AC at 50 Hz rated value: 12 ... 230 V.
At AC at 60 Hz rated value: 12 ... 230 V.
Product component light source: No.
Type of light source: filament lamp / LED.
Design of the optical signal: continuous light.
Socket design: BA 15d.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Green.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +60 °C.
