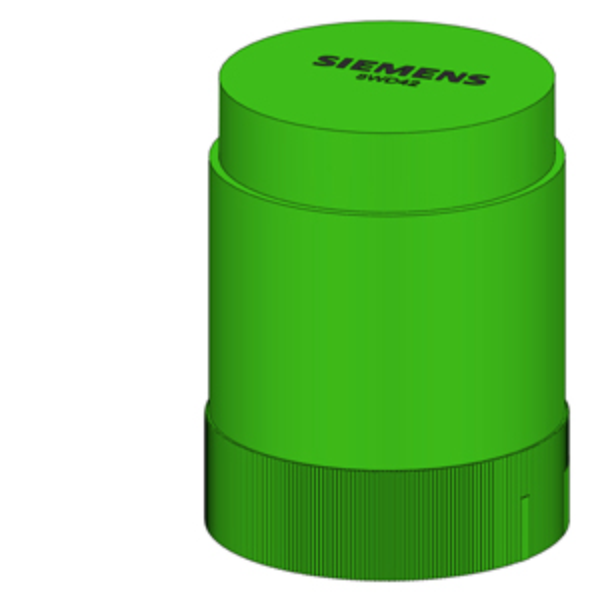

Single-flash light element, green, 24 V AC/DC
SKU: 8WD4220-0CC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Green, single-flash, 24 V DC, 50 mm in diameter.
The product brand name is SIRIUS.
Product name: Flashlight element.
The product's design includes light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: DC.
Operating voltage:
1 at DC rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 40 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: LED.
Service life of LED: 50 000 h.
Design of the optical signal: flashlight.
Light intensity: 82 cd.
Flash frequency: 1 Hz.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: green.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
