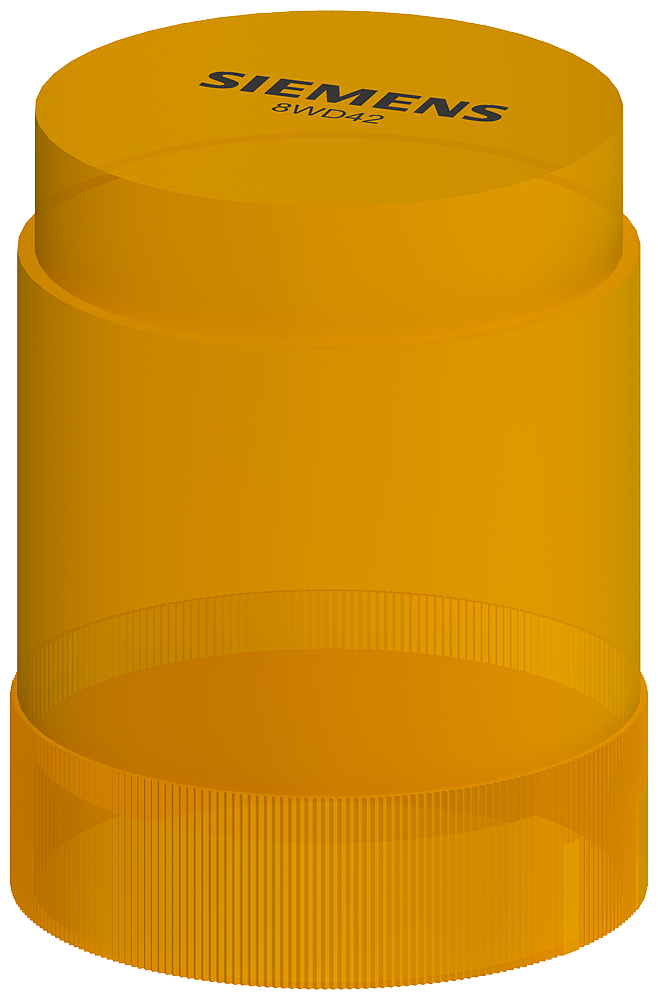

Single-flash light element, yellow, 24 V AC/DC
SKU: 8WD4220-0CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Single-flash light element, yellow, 24 V DC, diameter 50 mm.
The product brand is called SIRIUS.
Product designation: Flashlight element.
The design of the product including light sources.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: DC.
Operating voltage at DC rated value: 24 V.
Consumed current maximum: 45 mA.
Product component: light source.
Type of light source: LED.
Service life of LED: 50 000 h.
Design of the optical signal: flashlight.
Light intensity: 70 cd.
Flashing frequency: 1 Hz.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Yellow.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
