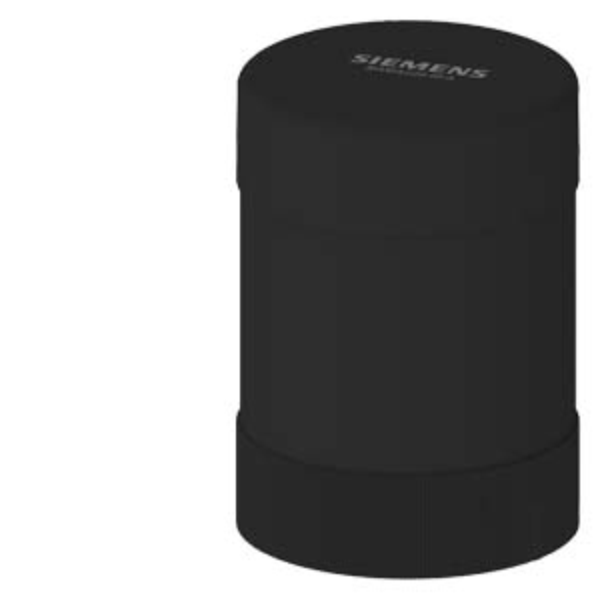

Buzzer element 24 V UC (pulsating or continuous tone settable)
SKU: 8WD4220-0FA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Buzzer element, black, continuous tone or pulsating, adjustable, 85 decibels, 24 V AC/DC, diameter 50 mm.
Buzzer element SIRIUS 8WD4 for modular signalling column installation, such as visual and/or audio warning devices or complicated process control.
Because of their high level of protection, rugged gadgets are ideal for industrial use and are particularly resistant to shocks and vibrations.
The secure bayonet mechanism facilitates installation and replacement of the acoustic elements.
The tone and volume of acoustic elements can be changed.
In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as well as buzzers and sirens.
They can be supplied in a variety of diameters and, optionally, with communication capability via an AS-Interface connection.
Optimal light dispersion is accomplished by combining many LEDs in a single light module.
Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories.
SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Consumed current maximum: 30 mA.
Type of acoustic signal: continuous tone / pulse tone.
Service life of acoustic signal device: 5 000 h.
Height: 72 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Black.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
