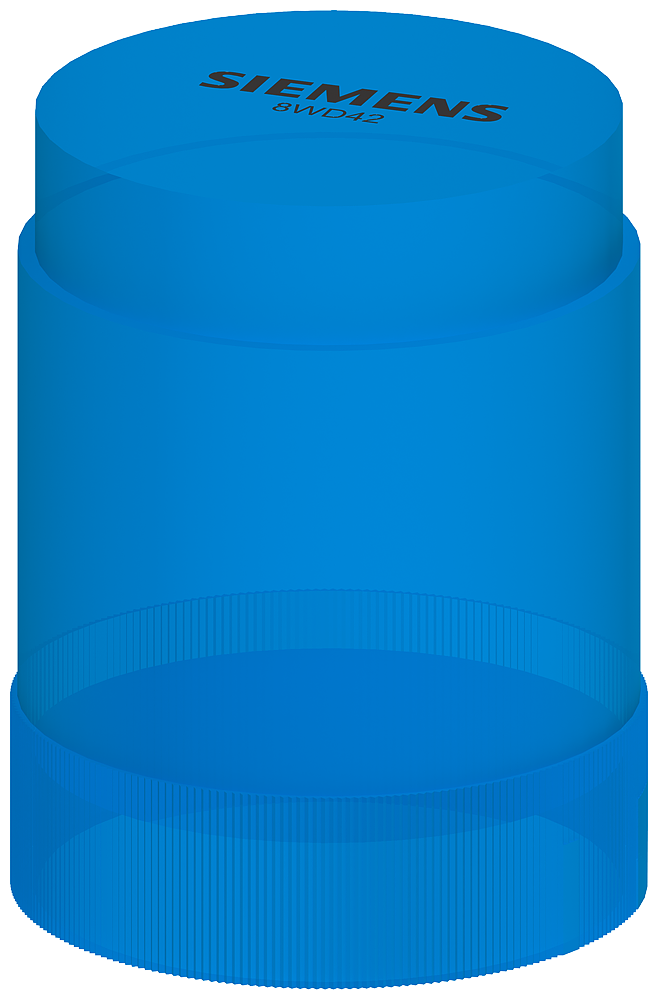

Continuous light elements LED, 24 V UC, blue
SKU: 8WD4220-5AF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Continuous light element, with integrated LED, blue, 24 V AC/DC, Diameter 50 mm.
The product brand is called SIRIUS.
Name of product: Elements of continuous light.
The design of the product including light sources.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
At DC rated value: 24 V.
At AC at 50 Hz rated value: 24 V.
At AC at 60 Hz rated value: 24 V.
Consumed current maximum: 30 mA.
Product component: light source.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: continuous light.
Light intensity: 0.12 cd, 0.08 ... 0.18 cd.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Blue.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
