      Signaling column, D=50 mm, individual element IP54, flashlight element

      SKU: 8WD4220-5BD

      Out of stock

      Availability: Out of Stock

      Short Description

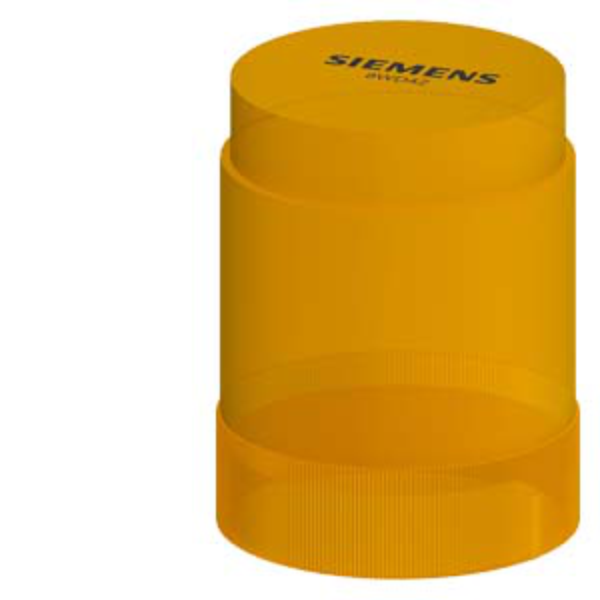

      Description: Flashlight element with integrated LED, yellow, 24 V AC/DC, 50 mm diameter. SIRIUS 8WD4 is a repeated-flash light element with light sources for modular installation of signalling columns, such as for visual and/or audio warning devices or complicated process control. The rugged gadgets are ideal for industrial applications due to their high level of protection and resistance to shocks and vibrations. The secure bayonet system enables easy installation and quick replacement of the light elements. In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as well as buzzers and sirens. They can be supplied with a variety of diameters, as well as communication capacity via connection to the AS- interface. Optimal light dispersion is accomplished by combining many LEDs in a single light module. Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories. SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
      8WD4220-5BD
      Alternative image 1
      Specifications: Type of voltage of the operating voltage: AC/DC. Operating voltage: 1 at DC rated value: 24 V. 1 at AC at 50 Hz rated value: 24 V. 1 at AC at 60 Hz rated value: 24 V. Consumed current maximum: 35 mA. Type of light source:  LED. Service life of LED: 100 000 h. Design of the optical signal: blink light. Flashing frequency: 1 Hz. Height: 67 mm. Width: 52 mm. Outer diameter of the signal column element: 50 mm. Material: PC. Colour: Yellow. Fastening method: Bayonet. Protection class IP: IP54. Ambient temperature during operation: -20 ... +50 °C.
