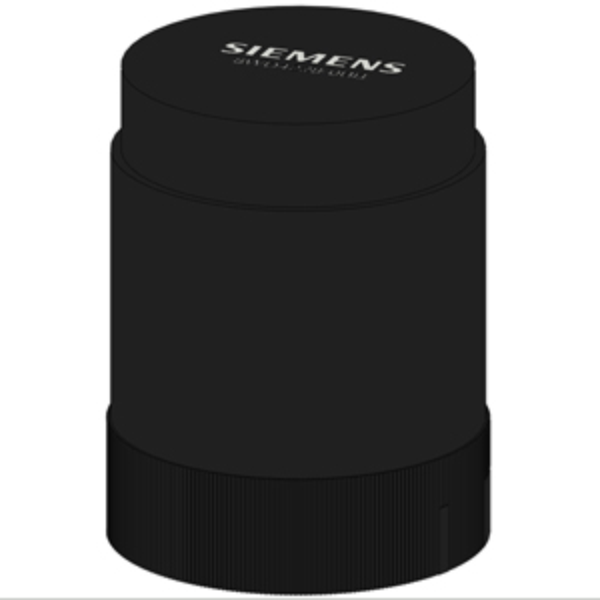

AS-i adapter element with external auxiliary voltage for 4 signaling elements
SKU: 8WD4228-0BB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AS-Interface adapter element, black, with external auxiliary voltage, for 4 signalling elements, 24 V DC.
Brand name: SIRIUS.
Designation: AS-Interface module.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: DC.
Operating voltage:
at DC rated value: 18.5 - 31.6 V.
1 at DC rated value: 24 V.
Consumed current maximum: 50 mA.
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: black.
Fastening method: Bayonet.
Protection class IP: IP54
Ambient temperature during operation: 20 ... +50 °C.
