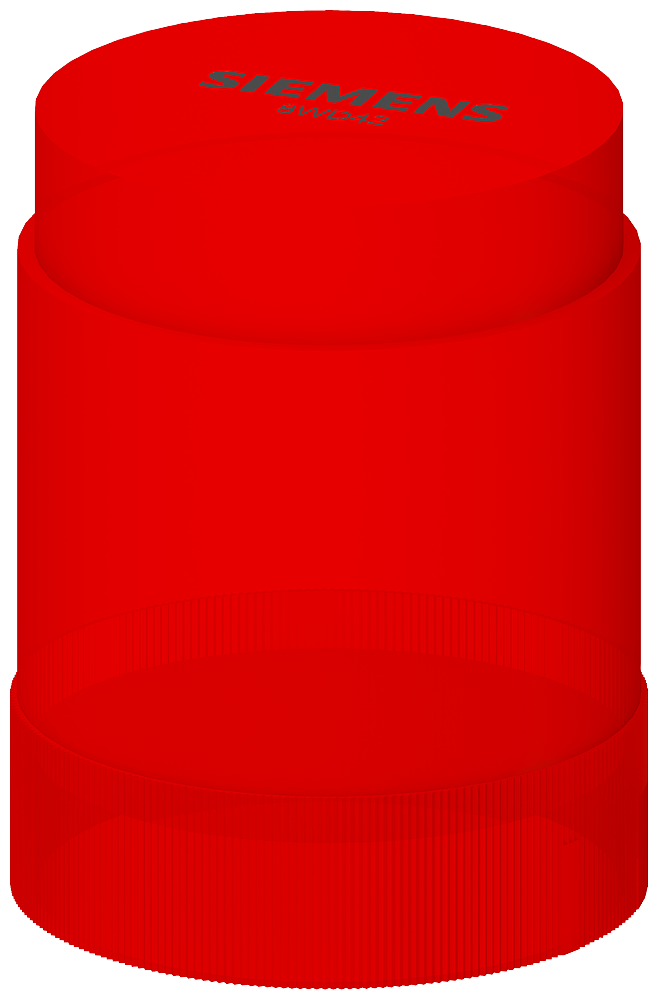

Continuous light element with integrated LED, red, 115 V AC
SKU: 8WD4240-5AB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Continuous light element, with integrated LED, red, 115 V AC, Diameter 50 mm.
The product brand is called SIRIUS.
Product designation: Continuous light element.
The design of the product including light sources.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC.
Operating voltage:
At AC at 50 Hz rated value: 115 V.
At AC at 60 Hz rated value: 115 V.
Consumed current maximum: 25 mA.
Product component: light source.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: continuous light.
Light intensity: 0.89 cd, 0.55 ... 1.39 cd.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Red.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
