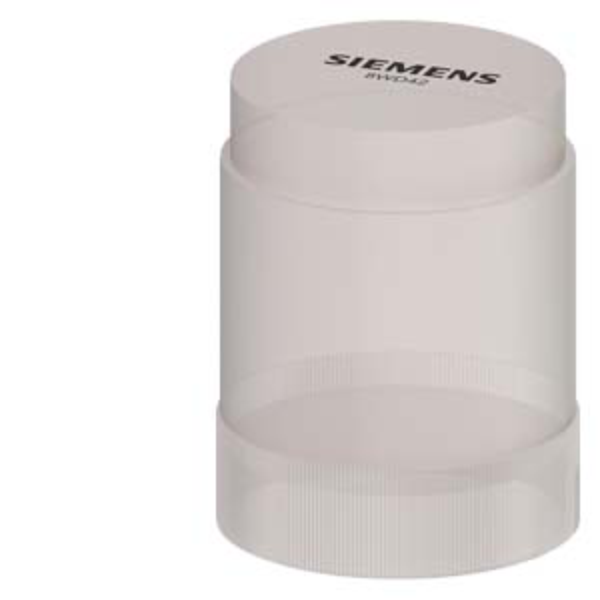

Continuous light element with integrated LED, clear, 115 V AC
SKU: 8WD4240-5AE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The clear continuous light element features an integrated LED, operates at 115 V AC, and has a diameter of 50 mm.
SIRIUS 8WD4 is a continuous light element with light sources designed for modular signalling column installations, such as visual and/or audible warning systems or advanced process control.
Rugged devices are suited for industrial use due to their high level of protection, which includes resistance to shocks and vibration.
The secure bayonet system allows for easy installation and quick replacement of light elements.
In addition to the steady light, there are flashlights, blink lights, and spinning lights in a range of colours and voltages, as well as buzzers and sirens.
They can be supplied with a variety of diameters as well as communication capacity via connection to the AS-Interface.
Optimal light dispersion is accomplished by combining many LEDs in a single light module.
Accessory options include feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters.
SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 115 V.
1 at AC at 60 Hz rated value: 115 V.
Consumed current maximum: 25 mA.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: continuous light.
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: clear.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
