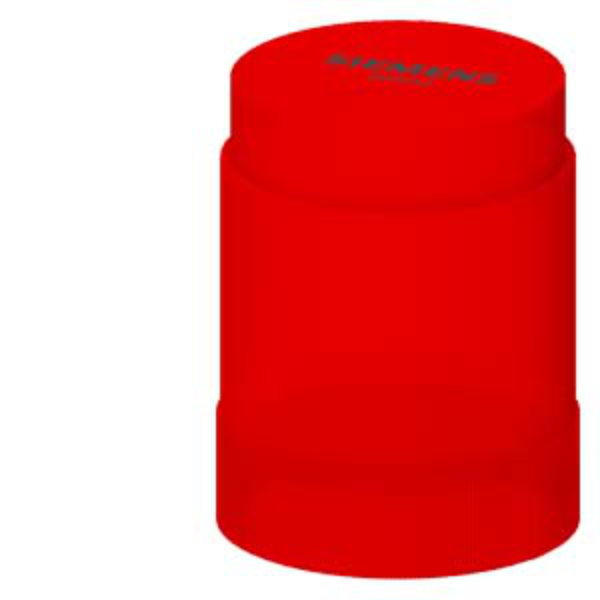

Continuous light element with integrated LED, red, 230 V AC
SKU: 8WD4250-5AB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Continuous light element with an embedded LED in red, 230 V AC, 50 mm diameter.
SIRIUS 8WD4 is a continuous light element with light sources for modular signalling column installation, such as for visual and/or aural warning devices or sophisticated process control.
The rugged gadgets are ideal for industrial use because of their high level of protection and resistance to shocks and vibrations.
The secure bayonet system enables for easy installation and quick replacement of the light elements.
In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as well as buzzers and sirens.
You can supply them in a variety of diameters and optionally add communication capability through an AS-Interface connection.
Optimal light dispersion is accomplished by combining many LEDs in a single light module.Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories.
SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 230 V.
1 at AC at 60 Hz rated value: 230 V.
Consumed current maximum: 35 mA.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: continuous light.
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: red.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
