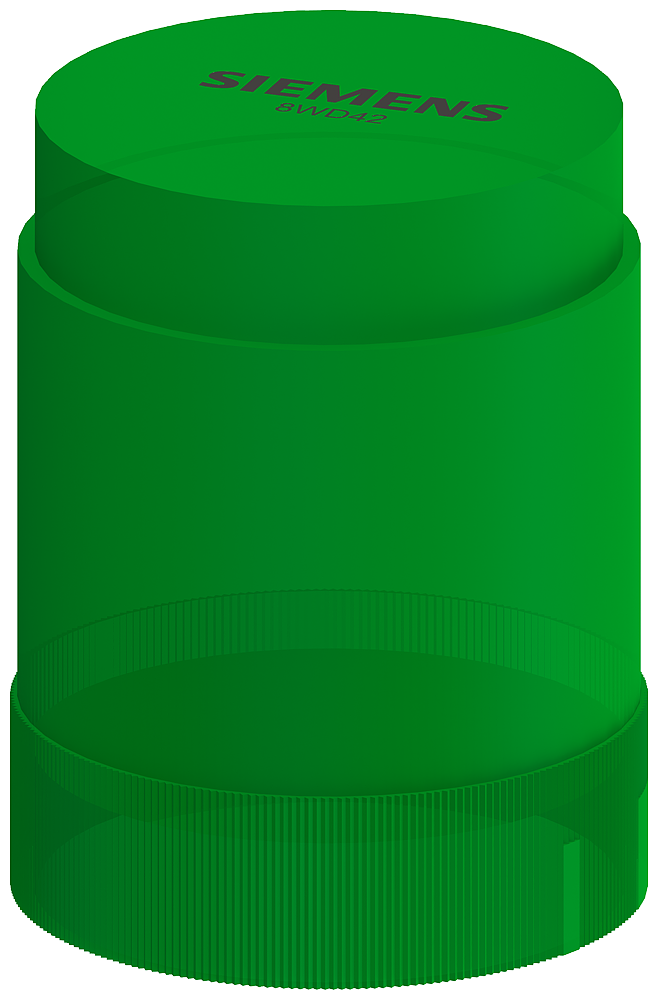

Signaling column, D=50 mm, individual element IP54, flashlight element, LED green
SKU: 8WD4250-5BC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flashlight element, with integrated LED, green, 230 V AC, Diameter 50 mm.
The product brand is called SIRIUS.
Product designation: Repeated-flash light element.
The design of the product including light sources.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC.
Operating voltage:
At AC at 50 Hz rated value: 230 V.
At AC at 60 Hz rated value: 230 V.
Consumed current maximum: 35 mA.
Product component: light source.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: blink light.
Light intensity: 1.13 cd, 0.7 ... 1.68 cd.
Flashing frequency: 1 Hz.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: Green.
Fastening method: Bayonet.
Protection class IP: IP54.
Ambient temperature during operation: -20 ... +50 °C.
