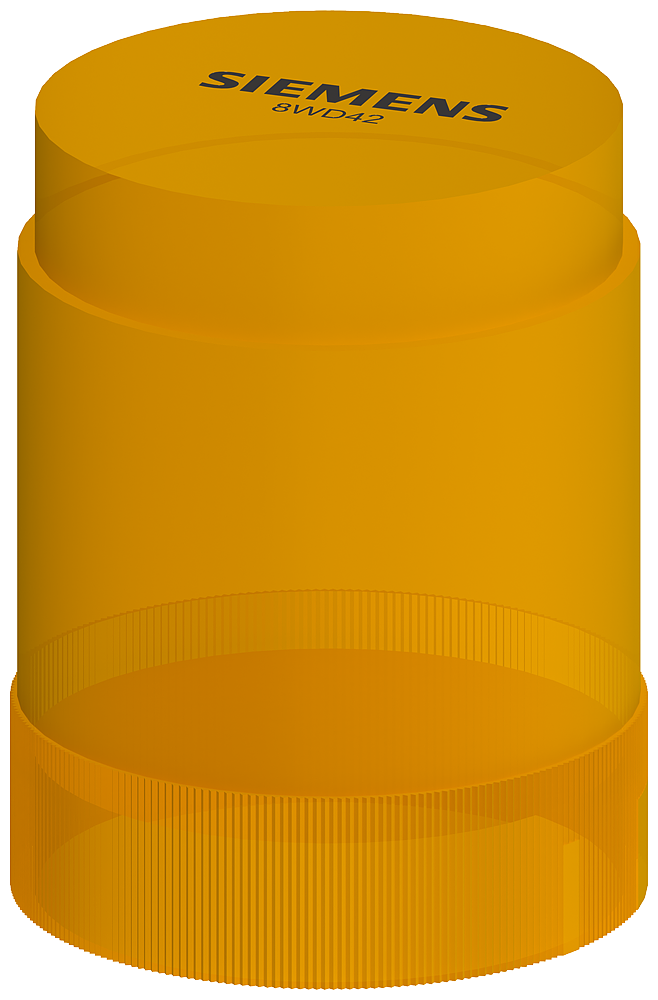

Flashlight element, with integrated LED, yellow, 230 V AC, Diameter 50 mm
SKU: 8WD4250-5BD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flashlight element, with integrated LED, yellow, 230 V AC, Diameter 50 mm.
SIRIUS 8WD4 is a repeated-flashlight element with light sources for modular signalling column installation, such as for visual and/or audio warning devices or sophisticated process control.
The rugged gadgets are ideal for industrial application due to their high level of protection and resistance to shocks and vibrations.
The secure bayonet system enables easy installation and quick replacement of the light elements.
In addition to the continuous light, there are flashlights, blink lights, and revolving lights in a variety of colours and voltages, as well as buzzers and sirens.
They can be supplied with various diameters and optionally with communication capability by connection to the AS interface.
Using several LEDs in a single light module ensures optimal light distribution.
Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories.
SIRIUS 8WD signalling columns are modular and have communication capability, with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: Repeated-flash light element.
Design of the product: including light sources.
Type of voltage of the operating voltage: AC.
Consumed current maximum: 35 mA.
Operating voltage:
1 at AC at 50 Hz rated value: 230V.
1 at AC at 60 Hz rated value: 230V.
Ambient temperature during operation: -20 ... +50 °C.
Lamp:
Product component light source: yes.
Type of light source: LED.
Design of the optical signal: blink light.
Light intensity: 2.74 cd.
Light intensity: 1.68 ... 3.88 cd.
Flashing frequency: 1 Hz.
Enclosure:
Height: 67 mm.
Width: 52 mm.
Outer diameter of the signal column element: 50 mm.
Material: PC.
Colour: yellow.
Fastening method: Bayonet.
Protection class IP: IP54.
