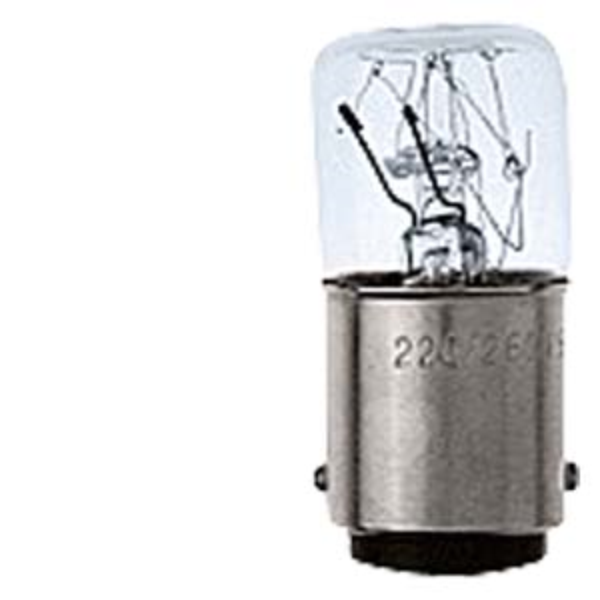

Incandescent lamp, 5 W, BA15d base, 24 V, accessory for 8WD4 signaling columns
SKU: 8WD4328-1XX
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This incandescent lamp, 24 V AC/DC, 5 W, Base BA 15d, is an auxiliary for signaling columns with diameters of 50 mm and 70 mm. It comes in a pack of 10 units.
Product brand name: SIRIUS.
Product designation: Incandescent lamp.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Reference code according to EN 61346-2: P.
Lamp:
Type of light source: filament lamp.
Socket design: BA 15d.
Enclosure:
Height: 42 mm.
Width: 16 mm.
Outer diameter of the signal column element: 70 mm.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
