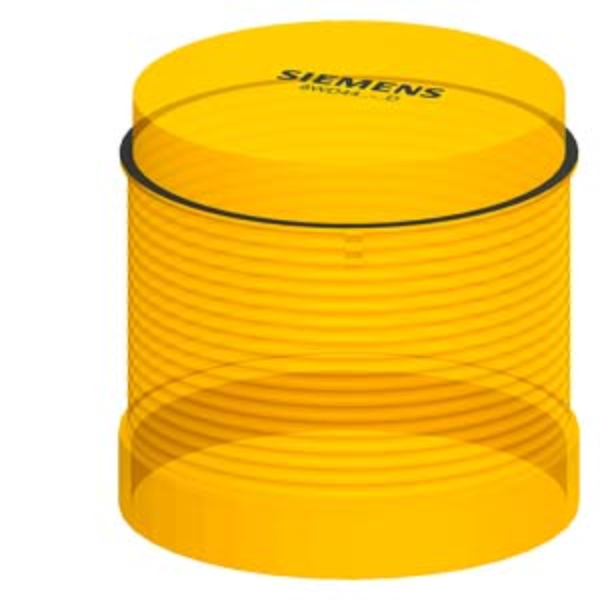

Signaling column continuous light element yellow, 12-240 V AC/DC
SKU: 8WD4400-1AD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Continuous light element, yellow, 12-230 V AC/DC, 70 mm diameter, BA 15d base with no light element.
Product brand name: SIRIUS.
Product designation: Continuous light element.
Design of the product: without light source.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
At DC rated value: 12 ... 230 V.
At AC at 50 Hz rated value: 12 ... 230 V.
At AC at 60 Hz rated value: 12 ... 230 V.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: No.
Type of light source: filament lamp / LED.
Design of the optical signal: continuous light.
Light intensity: 1.04 cd.
Light intensity: 0.79 ... 1.42 cd.
Socket design: BA 15d.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: yellow.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +60 °C.
