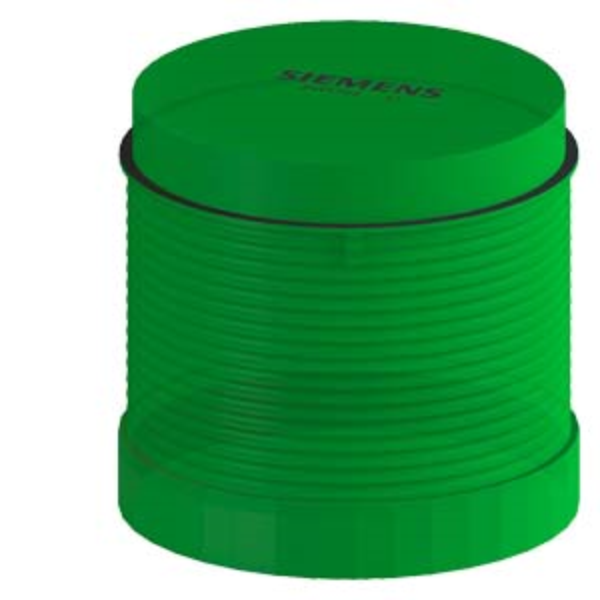

Signaling column single-flash light element green, 24 V DC
SKU: 8WD4420-0CC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Single-flash light element, with built-in electronic flash, green, 24 V AC, diameter 70 mm.
Product brand name: SIRIUS.
Product designation: Flashlight element.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: DC.
Operating voltage:
1 at DC rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 125 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: Xenon gas discharge lamp.
Design of the optical signal: flash light.
Light intensity: 24 761 cd.
Flash frequency: 1 Hz.
Number of flashes of light element: 4 000 000.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Color: green.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
