      Signaling column, multifunctional siren element, different sounds can be set

      SKU: 8WD4420-0EA2

      Out of stock

      Availability: Out of Stock

      Short Description

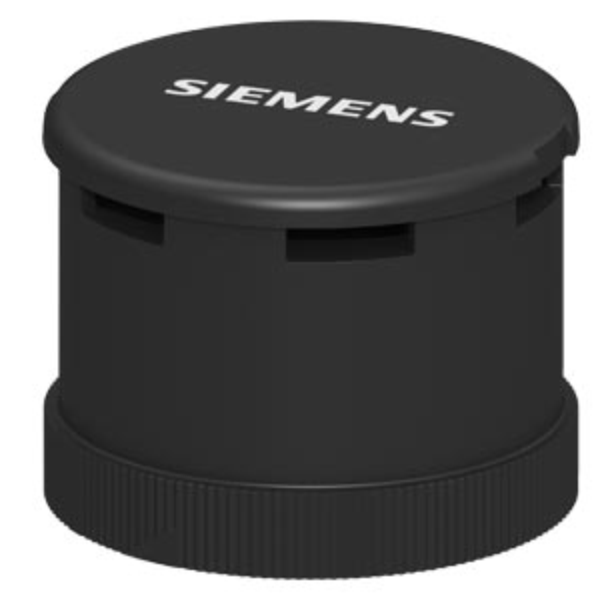

      Description: Siren element, multi-tone 102 dB, 8 tones + adjustable volume, black, 24 V AC/DC, diameter 70 mm. Because of their high level of protection, rugged gadgets are ideal for industrial use and are particularly resistant to shocks and vibrations. The secure bayonet system enables easy installation and quick replacement of the light elements. In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as are buzzers and sirens. They can be supplied with a variety of diameters as well as communication capacity via connection to the AS-Interface. Optimal light dispersion is accomplished by combining many LEDs in a single light module. Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories. SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
      8WD4420-0EA2
      Alternative image 1
      Specifications: Type of voltage of the operating voltage: AC/DC. Operating voltage: at DC rated value: 24 V. at AC at 50 Hz rated value: 24 V. at AC at 60 Hz rated value: 24 V. Consumed current maximum: 30 mA. Type of acoustic signal: 8 tones. Service life of acoustic signal device: 5 000 h. Height: 54 mm. Width: 70 mm. Outer diameter of the signal column element: 70 mm. Material: PC. Colour: black. Fastening method: Bayonet. Protection class IP: IP65. Ambient temperature during operation: -20 ... +50 °C.
