      Signaling column buzzer element continuous tone or pulsating can be set, 24 V

      SKU: 8WD4420-0FA

      Out of stock

      Availability: Out of Stock

      Short Description
      Description: Buzzer element, continuous tone or pulsating, adjustable, 85 decibels, black, 24 V AC/DC, 70 mm diameter. Because of their high level of protection, rugged gadgets are ideal for industrial use and are particularly resistant to shocks and vibrations. The secure bayonet system enables easy installation and quick replacement of the acoustic elements. The tone and volume of acoustic elements can be changed. In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as well as buzzers and sirens. They can be supplied with a variety of diameters as well as communication capacity via connection to the AS-Interface. Optimal light dispersion is accomplished by combining many LEDs in a single light module. Accessory options include feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters. SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.

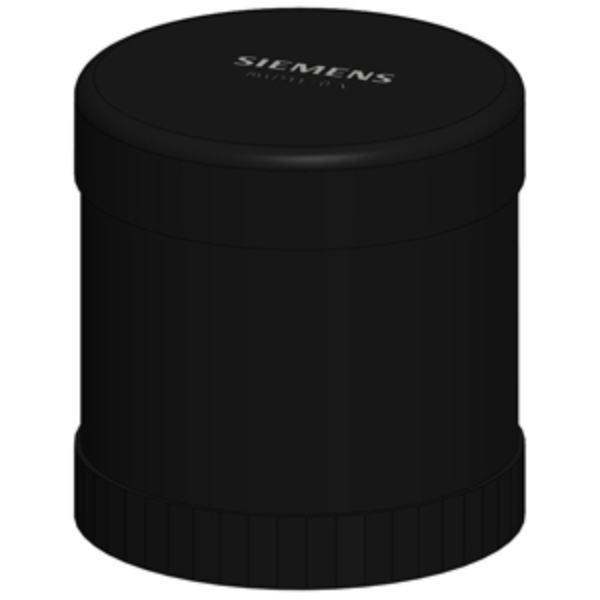

      8WD4420-0FA
      Alternative image 1
      Specifications: Type of voltage of the operating voltage: AC/DC. Operating voltage: 1 at DC rated value: 24 V. 1 at AC at 50 Hz rated value: 24 V. 1 at AC at 60 Hz rated value: 24 V. Consumed current maximum: 25 mA. Type of acoustic signal: continuous tone / pulse tone. Service life of acoustic signal device: 5 000 h. Tone frequency of alternating tone: 1.75 - 1.75 kHz. Height: 72 mm. Width: 70 mm. Outer diameter of the signal column element: 70 mm. Material: PC. Colour: Black. Fastening method: Bayonet. Protection class IP: IP65. Ambient temperature during operation: -20 ... +50 °C.
