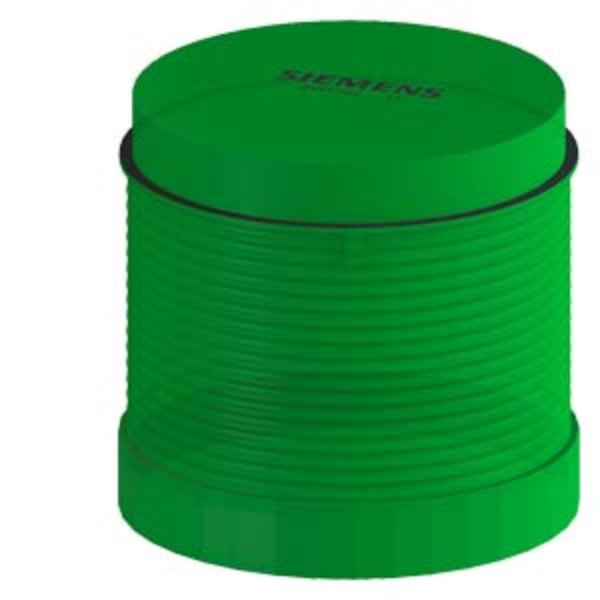

Signaling column continuous light element LED green, 24 V AC/DC
SKU: 8WD4420-5AC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Continuous light element with integrated LED, green, 24 V AC/DC, 70 mm diameter.
Product brand name: SIRIUS.
Product designation: Continuous light element.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 30 mA.
Reference code according to EN 61346-2: P.
Safety related data:
MTTFd: 8 781a.
Lamp:
Product component light source: Yes.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: continuous light.
Light intensity: 0.88 cd.
Light intensity: 0.6 ... 1.36 cd.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
material: PC.
Colour: Green.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
