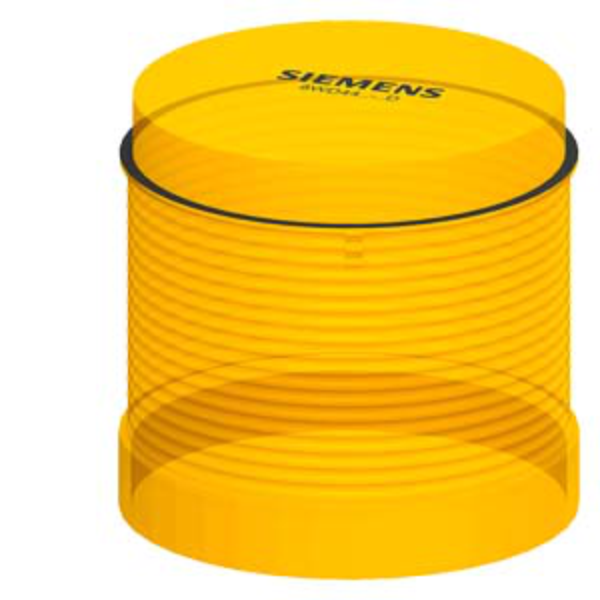

Signaling column flashlight element LED yellow, 24 V AC/DC
SKU: 8WD4420-5BD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flashlight element, with integrated LED, yellow, 24 V AC/DC, Diameter 70 mm.
The rugged gadgets are ideal for industrial use because of their high level of protection and resistance to shocks and vibrations.
The secure bayonet system enables easy installation and quick replacement of the light elements.
In addition to a constant light, flashlights, blink lights, and spinning lights in a variety of colours and voltages are available, as well as buzzers and sirens.
They can be supplied with a variety of diameters as well as communication capacity via connection to the AS-Interface.
Optimal light dispersion is accomplished by combining many LEDs in a single light module.
Accessory options include feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters.
SIRIUS 8WD signalling columns are modular and have communication capability with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Consumed current maximum: 35 mA.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: blink light.
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: yellow.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient temperature during operation: -20 ... +50 °C.
