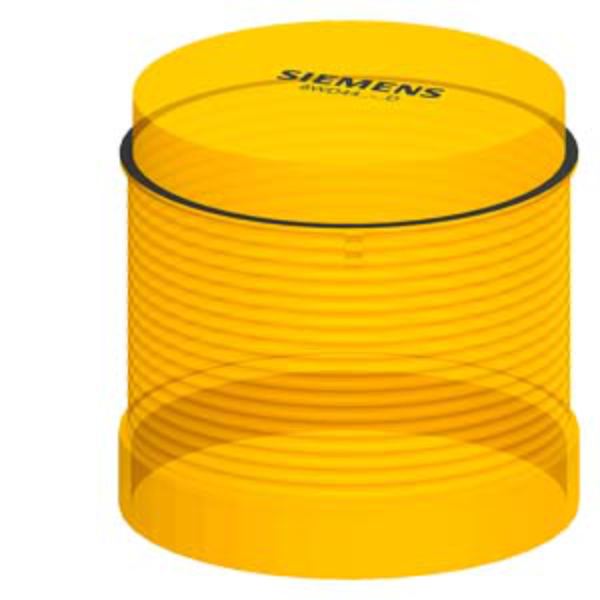

Signaling column rotating light element LED yellow, 24 V AC/DC
SKU: 8WD4420-5DD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Rotating light element with integrated LED, yellow, 24 V AC/DC, diameter 70 mm.
Product brand name: SIRIUS.
Product designation: Rotating light element.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Speed: 120 1/min.
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 40 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: rotating light.
Light intensity: 2.9 cd.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: yellow.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
