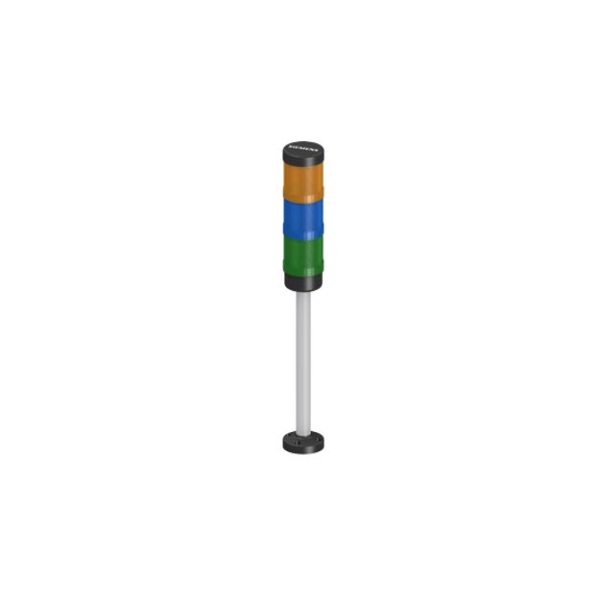

Complete unit signaling column, yellow, blue, green
SKU: 8WD4423-5AK05-0AE0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Complete unit signaling column, top: continuous light, yellow; center: continuous light, blue; bottom: continuous light, green; integrated LED 24 V AC/DC; connection element for pipe mounting, pipe, 250 mm; base, plastic.
Product brand name: SIRIUS.
Product designation: Complete unit.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Number of signal column elements: 3.
Design of the signal column element:
At position 3: continuous light.
At position 2: continuous light.
At position 1: continuous light.
Colour of the signal column element:
At position 3: yellow.
At position 2: blue.
At position 1: green.
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 95 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: LED.
Service life of LED: 100 000 h.
Enclosure:
Height: 457 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Fastening method: floor mounting.
Protection class IP: IP65.
Type of electrical connection: spring-loaded terminals.
Length of the mounting tube: 250 mm.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
