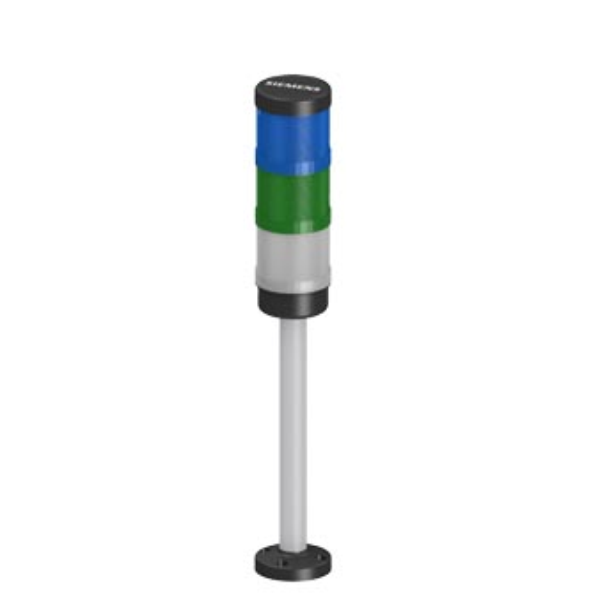

Complete unit signaling column, blue, green, white, with integrated LED 24 V
SKU: 8WD4423-5AK05-0AF0
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Complete unit signaling column, top: continuous blue light, center: continuous green light, integrated LED 24 V AC/DC, bottom: single-flash light element, clear, integrated.
Lighting electronics 24 VDC, connecting element for pipe mounting, pipe, 250 mm, base, plastic.
Product brand name: SIRIUS.
Product designation: Complete unit.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Number of signal column elements: 3.
Design of the signal column element:
At position 3: continuous light.
At position 2: continuous light.
At position 1: flashlight.
Colour of the signal column element:
At position 3: blue.
At position 2: green.
At position 1: clear.
Type of voltage of the operating voltage: DC.
Operating voltage:
1 at DC rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 185 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: LED, Xenon gas discharge lamp.
Service life of LED: 100 000 h.
Flash frequency: 1 Hz.
Number of flashes of light element: 4 000 000.
Enclosure:
Weight: 457 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Fastening method: floor mounting.
Protection class IP: IP65.
Type of electrical connection: spring-loaded terminals.
Length of the mounting tube: 250 mm.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
