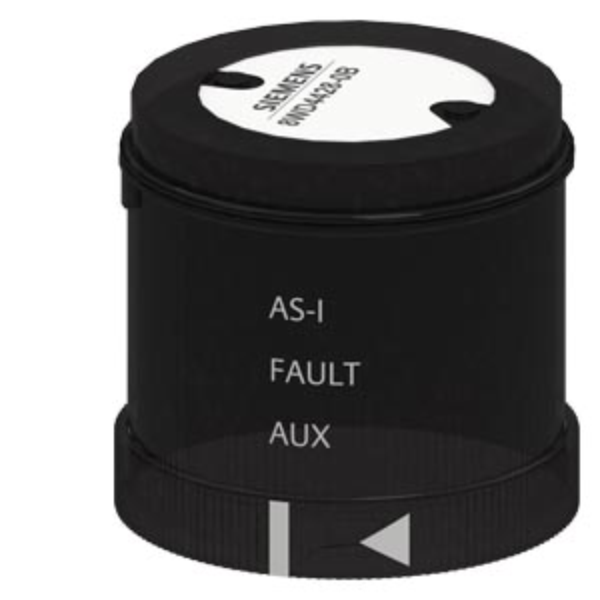

Signaling column, AS-Interface element, with external auxiliary voltage
SKU: 8WD4428-0BE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
AS-Interface adapter element, black, with or without external auxiliary voltage, standard AS-i, for 4 signaling elements, 24 V DC, and 70 mm diameter.
Product brand name: SIRIUS.
Product designation: AS-Interface module.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: DC.
Operating voltage:
At DC rated value: 18.5 ... 31.6 V.
1 at DC rated value: 24 V.
Consumed current maximum: 210 mA.
Reference code according to EN 61346-2: B.
Communication:
Design of the interface AS-Interface protocol: Yes.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: black.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
