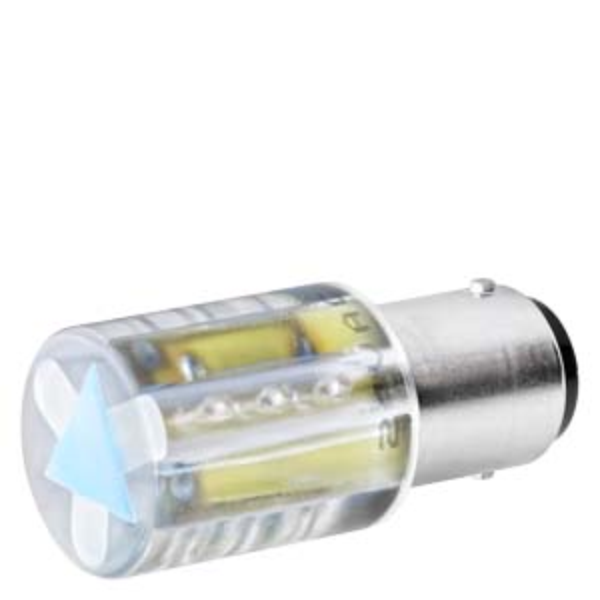

Signaling columns, acc. LED 24 V UC, BA15d, blue
SKU: 8WD4428-6XF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LED Base BA 15d, blue, 24 V AC/DC, accessory for signaling columns with widths of 50 mm and 70 mm.
Product brand name: SIRIUS.
Product designation: LED.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
1 at DC rated value: 24 V.
1 at AC at 50 Hz rated value: 24 V.
1 at AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 15 mA.
Reference code according to EN 61346-2: P.
Lamp:
Type of light source: LED.
Light intensity: 0.21 cd.
Socket design: BA 15d.
Enclosure:
Height: 45 mm.
Width: 20 mm.
Outer diameter of the signal column element: 70 mm.
Colour: Blue.
Ambient conditions:
Ambient temperature during operation: -20 ... +60 °C.
