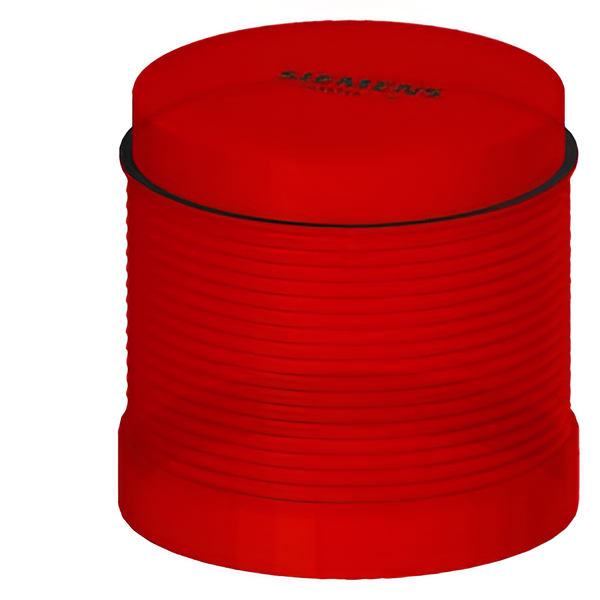

Signaling column single-flash light element red, 115 V AC
SKU: 8WD4440-0CB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Red, single-flash light element with an integrated electronic flash, 115 V AC, and 70 mm in diameter.
Product brand name: SIRIUS.
Product designation: Flashlight element.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 115 V.
1 at AC at 60 Hz rated value: 115 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: Xenon gas discharge lamp.
Design of the optical signal: flash light.
Light intensity: 11 507 cd.
Flash frequency: 1 Hz.
Number of flashes of light element: 4 000 000.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: red.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
