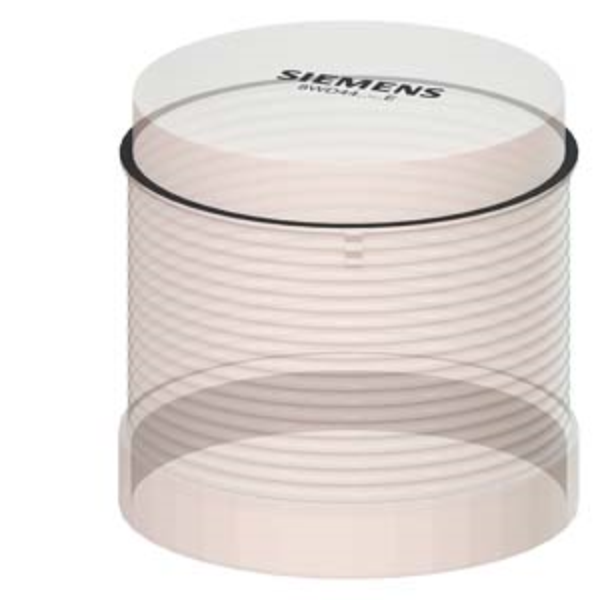

Signaling column flashlight element LED clear, 115 V AC
SKU: 8WD4440-5BE
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Flashlight element with integrated LED, clear, 115 V AC, diameter: 70 mm.
Product brand name: SIRIUS.
Product designation: Repeated-flash light element.
Design of the product: including light sources.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 115 V.
1 at AC at 60 Hz rated value: 115 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 25 mA.
Reference code according to EN 61346-2: P.
Lamp:
Product component light source: Yes.
Type of light source: LED.
Service life of LED: 100 000 h.
Design of the optical signal: blink light.
Light intensity: 1.04 cd.
Light intensity: 0.73 ... 1.52 cd.
Flashing frequency: 1 Hz.
Enclosure:
Height: 65.5 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
material: PC.
Colour: Clear.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
