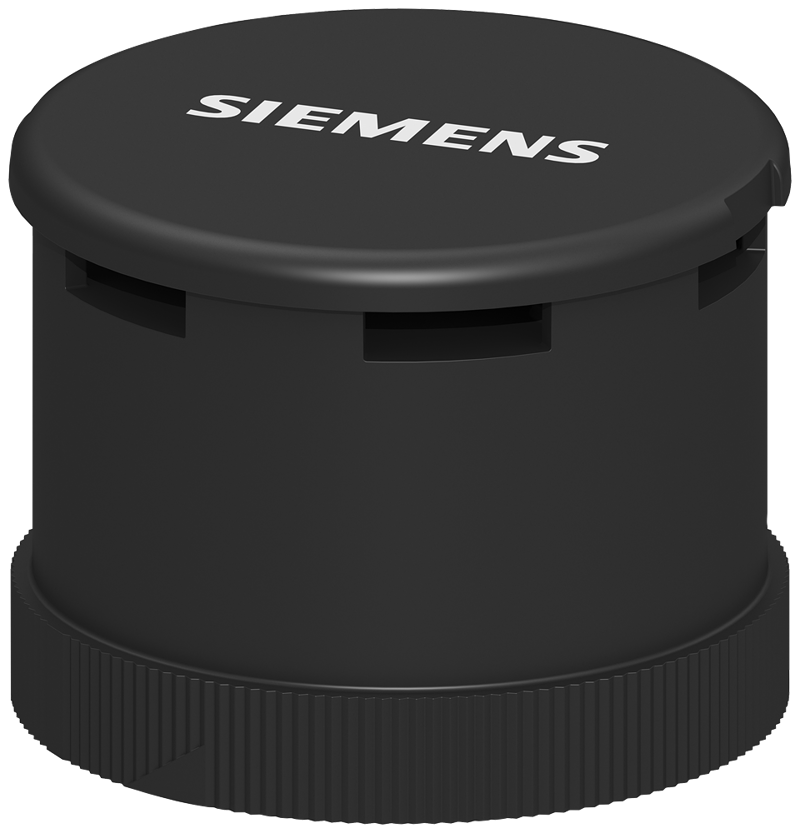

Siren element, multi-tone 102 dB, 8 tones + adjustable volume, black, 230 V AC, diameter 70 mm
SKU: 8WD4450-0EA2
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
SIRIUS 8WD4 allows for the modular installation of signalling columns, such as for visual and/or audio warning devices or complicated process control.
The rugged gadgets are ideal for industrial application due to their high level of protection and resistance to shocks and vibrations.
The secure bayonet system enables easy installation and quick replacement of the acoustic elements.
Acoustic elements' tone and volume can be modified.
In addition to the continuous light, there are flashlights, blink lights, and spinning lights in a variety of colours and voltages, as well as buzzers and sirens.
They can be supplied with various diameters and optionally with communication capability by connection to the AS interface.
Using several LEDs in a single light module ensures optimal light distribution.
Feet, pipes, brackets, incandescent bulbs, LEDs, and pipe adapters are all available as accessories.
SIRIUS 8WD signalling columns are modular and have communication capability, with a modern design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product brand name: SIRIUS.
Product designation: Siren element.
Product function adjustable acoustic signal: yes.
Type of voltage of the operating voltage: AC.
Consumed current maximum: 45mA.
Ambient temperature during operation: -20 ... +50 °C.
Operating voltage:
1 at AC at 50 Hz rated value: 230V.
1 at AC at 60 Hz rated value: 230V.
Tone frequency:
1: 0.9kHz.
2: 3.5kHz.
Acoustic signal:
Type of acoustic signal: 8 Tones.
Loudness level: 102 db.
Loudness level: 92 ... 102 db.
Tone frequency of alternating tone: 0.9 ... 2.8 kHz.
Enclosure:
Height: 54 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: Black.
Fastening method: Bayonet.
Protection class IP: IP65.
