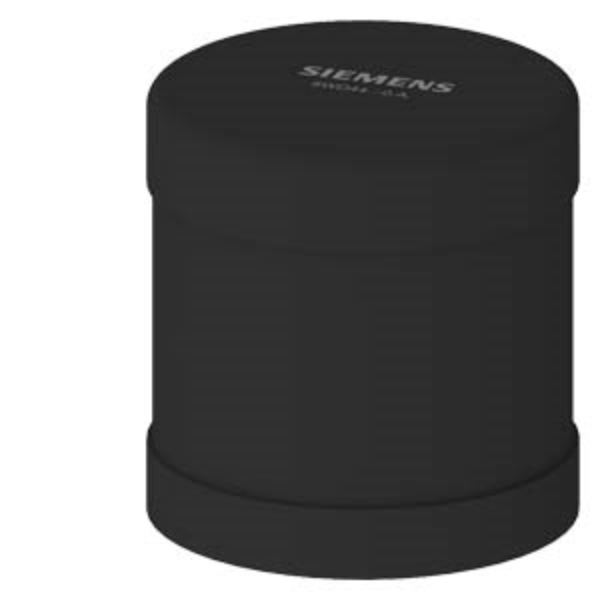

Signaling column buzzer element continuous tone or pulsating can be set
SKU: 8WD4450-0FA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Buzzer element, continuous tone or pulsating, adjustable, 85 dBA, black, 230 V AC, diameter 70 mm.
Product brand name: SIRIUS.
Product designation: Buzzer element.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Product function adjustable acoustic signal: Yes.
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 230 V.
1 at AC at 60 Hz rated value: 230 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Consumed current maximum: 25 mA.
Tone frequency:
1: 1.75 kHz.
Reference code according to EN 61346-2: P.
Acoustic signal:
Type of acoustic signal: continuous tone / pulse tone.
Service life of acoustic signal device: 5 000 h.
Loudness level: 85 dB.
Loudness level: 85 ... 85 dB.
Tone frequency of alternating tone: 1.75 ... 1.75 kHz.
Enclosure:
Height: 72 mm.
Width: 70 mm.
Outer diameter of the signal column element: 70 mm.
Material: PC.
Colour: Black.
Fastening method: Bayonet.
Protection class IP: IP65.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
