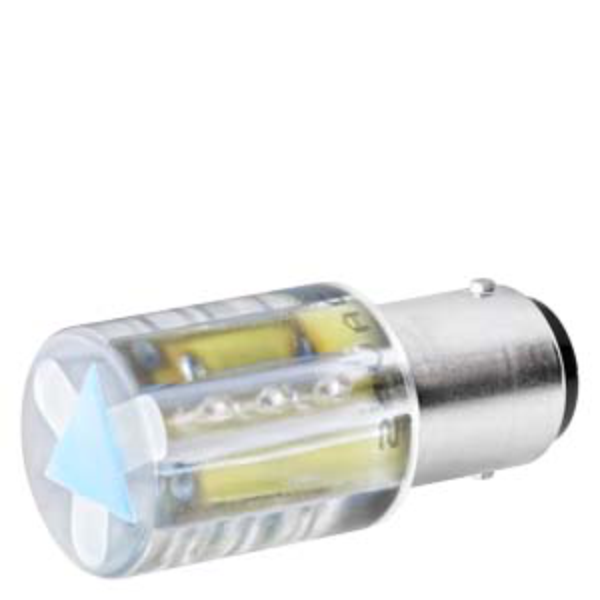

Signaling columns, acc. LED 230 V AC, BA15d, blue
SKU: 8WD4458-6XF
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
LED base BA15d, Blue, 230 V AC, suitable for signalling columns with diameters of 50 mm and 70 mm.
The product brand name is SIRIUS.
The product designation is LED.
Buy currently uses Select Automation shop pricing and checkout.
General technical data:
Type of voltage of the operating voltage: AC.
Operating voltage:
1 at AC at 50 Hz rated value: 230 V.
1 at AC at 60 Hz rated value: 230 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -15 %.
Reference code according to EN 61346-2: P.
Lamp:
Type of light source: LED.
Light intensity: 0.25 cd.
Socket design: BA 15d.
Enclosure:
Height: 45 mm.
Width: 20 mm.
Outer diameter of the signal column element: 70 mm.
Colour: blue.
Ambient conditions:
Ambient temperature during operation: -20 ... +60 °C.
