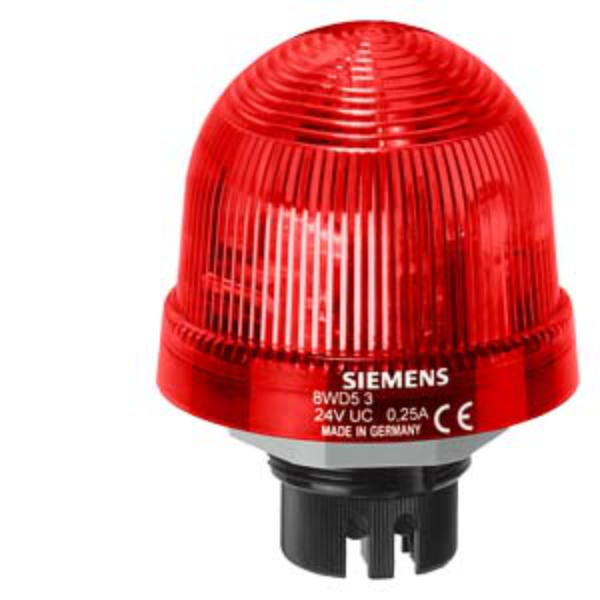

Integrated signal lamp, single flash light 24 V red
SKU: 8WD5320-0CB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Integrated signal lamp, single flashlight, w. built-in electronic flash, red, 24 V DC, diameter 70 mm.
The integrated signal lamps are highly resistant to shock and vibration.
Their unique design allows for optimal light emission either to the side or upwards.
In addition to continuous lighting, blinking lights, rotating beacon lights, and flashing lights are available in a variety of colours and voltages.
Accessories options include feet, pipes, adapters, incandescent bulbs, LEDs, and pipe adapters.
SIRIUS 8WD signalling column: modular and communication capable.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Designation: Flashlight element.
Consumed current maximum: 125 mA.
Type of voltage of the operating voltage: DC.
Operating voltage:
1 at DC rated value: 24 V.
Fastening method: Bayonet / flush mounting.
Material: PC; PC/ABS; PA.
Colour: red.
Type of electrical connection: screw terminal.
Outer diameter of the signal column element: 75 mm.
Design of the optical signal: flashlight.
Type of light source: Xenon gas discharge lamp.
Ambient temperature during operation: -20 ... +50 °C.
Protection class IP: IP65.
Depth: 31 mm.
Height: 66 mm.
Width: 75 mm.
