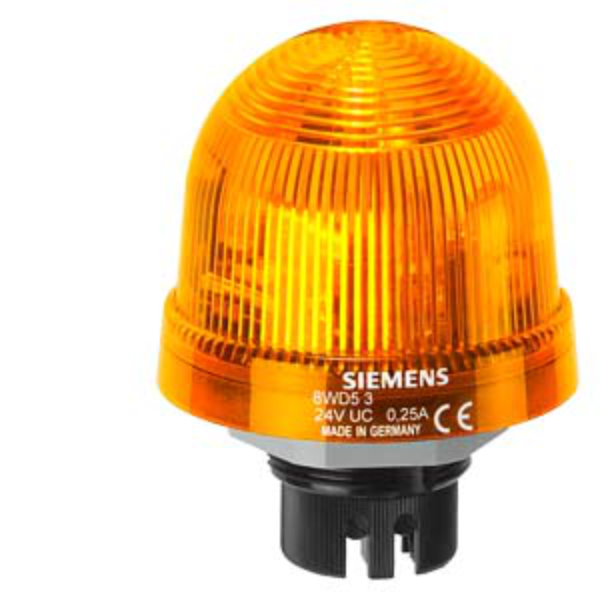

Integrated signal lamp, single flash light 24 V yellow
SKU: 8WD5320-0CD
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Integrated signal lamp, one flashlight, 24 V DC, 70 mm in diameter, and an integrated electronic flash.
General technical data:
Product designation: Flashlight element.
Consumed current maximum: 125 mA.
Type of voltage of the operating voltage: DC.
Operating voltage:
1 at DC rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Reference code according to IEC 81346-2: P.
Fastening method: Bayonet / flush mounting.
Material: PC; PC/ABS; PA.
Colour: yellow.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Product component light source: Yes.
Type of electrical connection: screw terminal.
Outer diameter of the signal column element: 75 mm.
Lamp:
Design of the optical signal: flash light.
Type of light source: Xenon gas discharge lamp.
Light intensity: 35 796 cd.
Flash frequency: 1 Hz.
Number of flashes of light element: 4 000 000.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
Protection class IP: IP65.
Depth: 31 mm.
Height: 66 mm.
Width: 75 mm.
