Integrated signal lamp, continuous light LED, 24 V UC green
SKU: 8WD5320-5AC
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

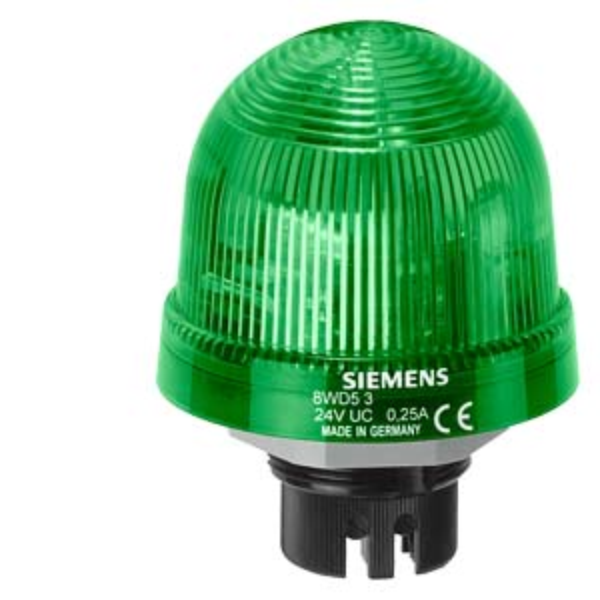

Integrated signal lamp, continuous illumination, with integrated LED, green, 24 V AC/DC, diameter 70 mm.
General technical data:
Product designation: Continuous light element.
Consumed current maximum: 45 mA.
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
At DC rated value: 24 V.
At AC at 50 Hz rated value: 24 V.
At AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Reference code according to IEC 81346-2: P.
Fastening method: Bayonet / flush mounting.
Material: PC; PC/ABS; PA.
Colour: green.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Product component light source: No.
Type of electrical connection: screw terminal.
Outer diameter of the signal column element: 75 mm.
Lamp:
Design of the optical signal: continuous light.
Type of light source: LED.
Light intensity: 2.52 cd.
Light intensity: 1.24 ... 4.9 cd.
Service life of LED: 100 000 h.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
Protection class IP: IP65.
Depth: 31 mm.
Height: 66 mm.
Width: 75 mm.
