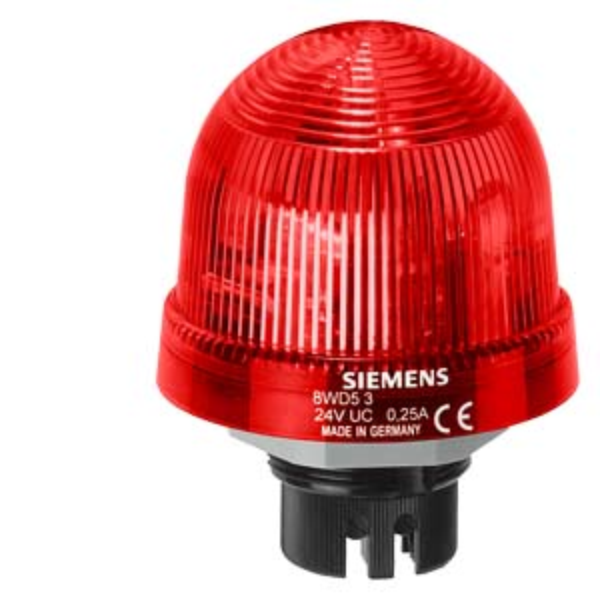

Integrated signal lamp, repeated flash light LED, 24 V DC red
SKU: 8WD5320-5BB
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Integrated signal lamp, repeated flash light with integrated LED, red, 24 V AC/DC, diameter 70 mm.
General technical data:
Product designation: Repeated-flash light element.
consumed current maximum: 45 mA.
Type of voltage of the operating voltage: AC/DC.
Operating voltage:
At DC rated value: 24 V.
At AC at 50 Hz rated value: 24 V.
At AC at 60 Hz rated value: 24 V.
Relative positive tolerance of the operating voltage: 10 %.
Relative negative tolerance of the operating voltage: -10 %.
Reference code according to IEC 81346-2: P.
Fastening method: Bayonet / flush mounting.
Material: PC; PC/ABS; PA.
Colour: Red.
Buy currently uses Select Automation shop pricing and checkout.
Mechanical data:
Product component light source: Yes.
Type of electrical connection: screw terminal.
Outer diameter of the signal column element: 75 mm.
Lamp:
Design of the optical signal: blink light.
Type of light source: LED.
Light intensity: 1.38 cd.
Flashing frequency: 1 Hz.
Service life of LED: 100 000 h.
Ambient conditions:
Ambient temperature during operation: -20 ... +50 °C.
Protection class IP: IP65.
Depth: 31 mm.
Height: 66 mm.
Width: 75 mm.
