H2 5/14D BL BD
SKU: 9004360000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Wire-end ferrule:
Linked of wire-end ferrule strips.
DIN colour codes.
Another colour code.

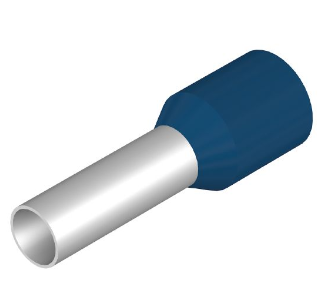

Standard wire-end ferrule, 10 mm × 8 mm, Blue.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Net weight: 0.14 g.
Technical data:
Description of article: Linked wire-end ferrules, blue.
Version: Standard.
Wire-end ferrules:
Collar diameter (D2): 4.2 mm.
Colour code: DIN.
Conductor cross-section: 2.5 mm².
Contact surface diameter (D1): 2.2 mm.
Contact surface length (L2): 8 mm.
L1 in mm: 14 mm.
Metal sleeve thickness (S1): 0.15 mm.
Military designation: T 20A 017 A.
Plastic collar thickness (S2): 0.25 mm.
Stripping length: 10 mm.
Wire connection cross section AWG, max.: AWG 14.
