H10 0/26D R ZH SV
SKU: 9004710000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Wire-end ferrule:
Supplied in multi-pack bag.
Weidmüller's colour code.
DIN colour codes.
Another colour code.

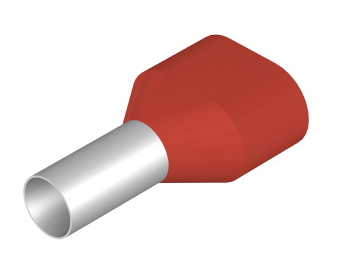

Twin wire-end ferrule, 17 mm × 12 mm, Red.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Net weight: 0.89 g.
Technical data:
Description of article: Twin wire-end ferrule, red.
Version: Twin wire-end ferrule.
Wire-end ferrules:
Collar diameter (D2): 13.4 mm.
Collar width (B): 7.6 mm.
Colour code: DIN.
Conductor cross-section: 10 mm².
Contact surface diameter (D1): 5.8 mm.
Contact surface length (L2): 12 mm.
L1 in mm: 26 mm.
Metal sleeve thickness (S1): 0.2 mm.
Plastic collar thickness (S2): 0.5 mm.
Stripping length: 17 mm.
Wire connection cross section AWG, max.: AWG 8
