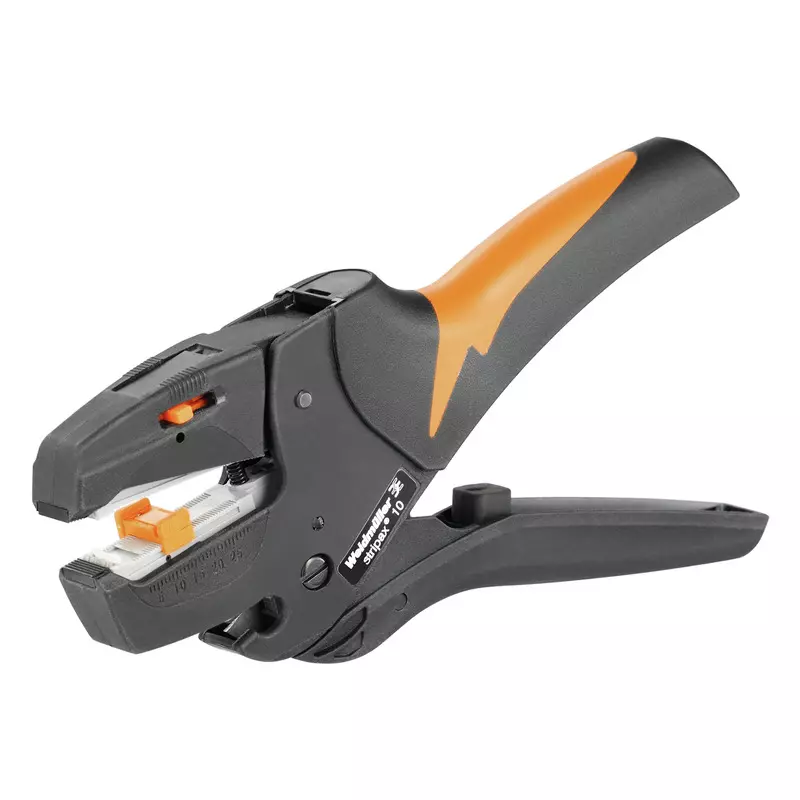

STRIPAX
SKU: 9005000000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
STRIPAX:
Stripping tools that automatically adjust themselves.
For flexible and solid conductors.
Suitable for mechanical and plant engineering, railway and rail traffic, wind energy, robot technology, explosion prevention, and marine, offshore, and ship building industries.
Use the end stop to regulate the stripping length.
Clamping jaws automatically open after stripping.
There is no fanning out of individual conductors.
Adjustable to different insulating thicknesses.
Cables are double-insulated in two steps, requiring no specific adjustments.
No play in the self-adjusting cutting unit.
Long service life.
Ergonomically optimized design.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 22 mm.
Depth (inches): 0.866 inch.
Height: 99 mm.
Height (inches): 3.898 inch.
Width: 190 mm.
Width (inches): 7.48 inch.
Net weight: 174.63 g.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0.
Technical data:
Description of article: Stripping tool for up to 10 mm².
Stripping tools:
Cable type: Flexible and solid conductors with PVC insulation.
Conductor cross-section (cutting capacity): 6 mm².
Conductor cross-section, max.: 10 mm².
Conductor cross-section, min.: 0.08 mm².
Stripping length, max.: 25 mm.
Stripping range AWG, max.: 8 AWG.
Stripping range AWG, min.: 28 AWG.
Stripping range, min.: 0.08 mm².
