PZ 50
SKU: 9006450000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Wire end ferrule crimping instruments, with and without plastic collars:
A ratchet ensures accurate crimping.
In the event of an improper operation, select the Release option.

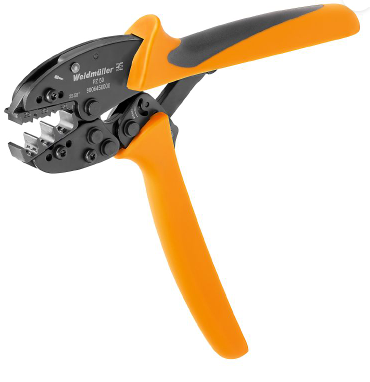

Crimping tool for wire-end ferrules (25mm², 50mm²) and indent crimp.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Width: 250 mm.
Width (inches): 9.842 inch.
Net weight: 595.3 g.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
Description of article: (1)Crimping tool.
Version: Mechanical, without interchangeable inserts.
Description of contact:
Conductor cross-section, max.AWG: AWG 0.
Conductor cross-section, min.AWG: AWG 4.
Crimping range, max.: 50 mm².
Crimping range, min.: 25 mm².
Type of contact: Wire-end ferrules with/without plastic collars.
Tool data crimping:
Crimping type/profile: Indent crimp.
Wire end ferrules cross-section, max.: 50 mm².
Wire end ferrules cross-section, min.: 25 mm².
