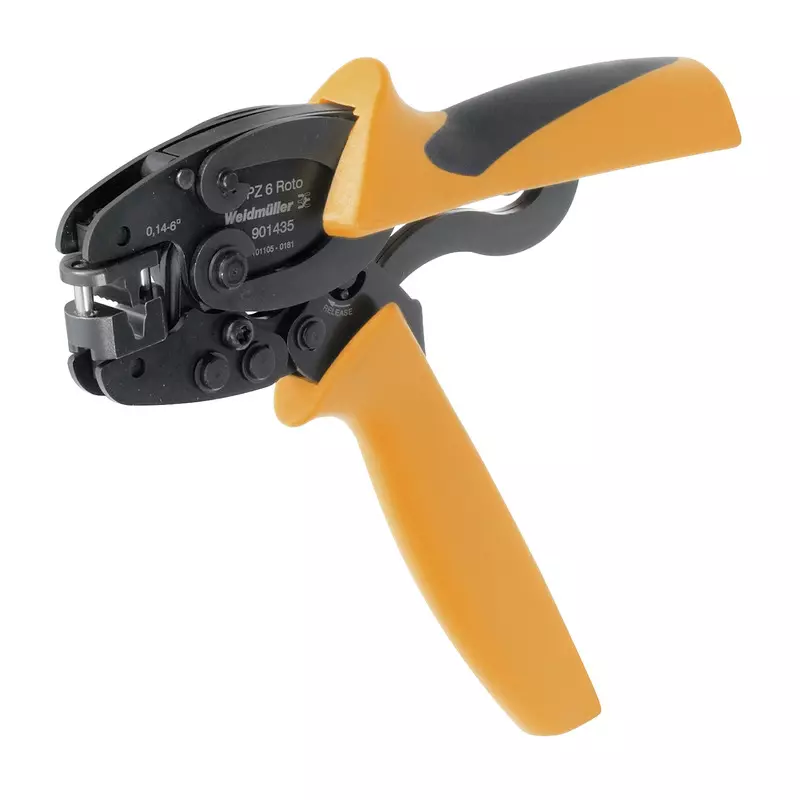

PZ 6 Roto
SKU: 9014350000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Wire end ferrule crimping instruments, with and without plastic collars:
A ratchet ensures accurate crimping.
In the event of an improper operation, select the Release option.
Crimping tool for wire-end ferrules (0.14mm², 6mm²) and Trapezoidal crimp.
Buy currently uses Select Automation shop pricing and checkout.
Specifications dimensions and weights:
Depth: 22 mm.
Depth (inches): 0.866 inch.
Height: 80 mm.
Height (inches): 3.15 inch.
Width: 200 mm.
Width (inches): 7.874 inch.
Net weight: 427.28 g.
Environmental Product Compliance:
REACH SVHC: Lead 7439-92-1.
SCIP: 2159813b-98fd-4068-b62a-bc89a046c012.
Technical data:
Description of article: (1) Crimping tool.
Version: Mechanical, without interchangeable inserts.
Description of contact:
Conductor cross-section, max. AWG: AWG 10.
Conductor cross-section, min. AWG: AWG 26.
Crimping range, max.: 6 mm².
Crimping range, min.: 0.14 mm².
Type of contact: Wire-end ferrules with/without plastic collars.
Tool data crimping:
Crimping type/profile: Trapezoidal crimp.
Wire end ferrules cross-section, max.: 6 mm².
Wire end ferrules cross-section, min.: 0.14 mm².
