H4 0/18T OR
SKU: 9021100000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Standard wire-end ferrule:
Supplied loose in a polybag.
DIN colour codes.
Another colour code.

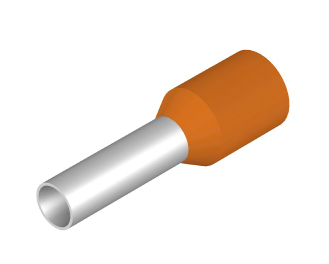

Standard wire-end ferrule, 12 mm × 10 mm, Orange.
Buy currently uses Select Automation shop pricing and checkout.
Specification dimensions and weights:
Net weight: 0.256 g.
Technical data:
Description of article: Wire end ferrule with plastic collar, orange.
Version: Standard.
Wire-end ferrules:
Collar diameter (D2): 4.8 mm.
Colour code: Telemecanique.
Conductor cross-section: 4 mm².
Contact surface diameter (D1): 2.8 mm.
Contact surface length (L2): 10 mm.
L1 in mm: 18 mm.
Metal sleeve thickness (S1): 0.2 mm.
Military designation: T 20A 023 A.
Plastic collar thickness (S2): 0.3 mm.
Stripping length: 12 mm.
Wire connection cross section AWG, max.: AWG 12.
