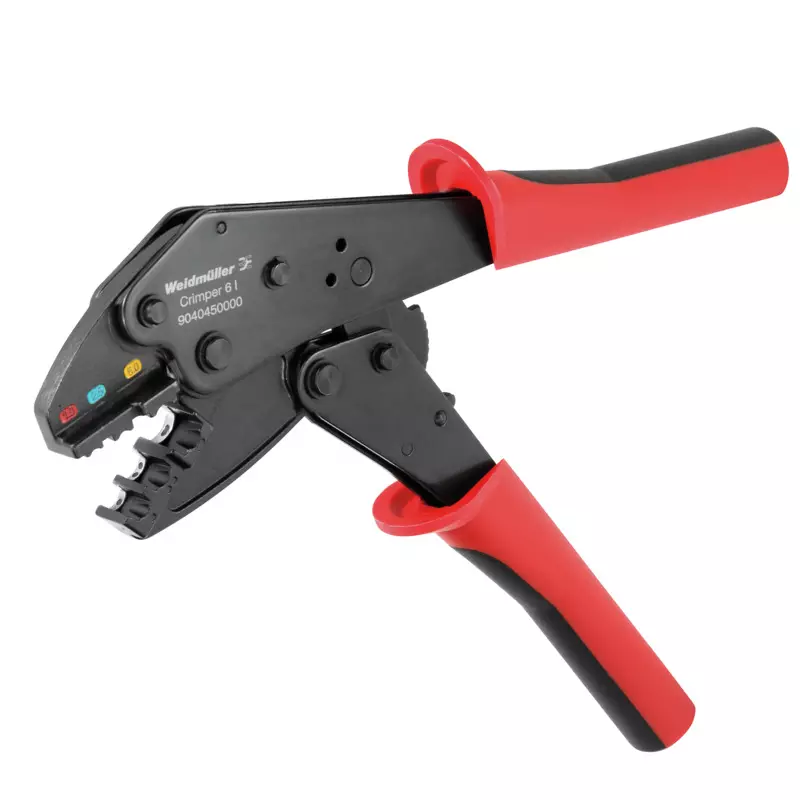

CRIMPER 6 I
SKU: 9040450000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Crimping tools include shielded connections, cable lugs, terminal pins, parallel and serial connectors, and plug-in connectors.
Ratchet ensures exact crimping.
In the event of an improper operation, select the Release option.
Stop allows for precise contact positioning.
Tested according to DIN EN 60352 part 2.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Dimensions and weights:
Width: 200mm.
Net weight: 504.57 g.
Description of article: Crimping tool for insulated connectors, 0.5-6 mm².
Version: Mechanical, without interchangeable inserts.
Description of contact:
Type of contact: Insulated connector.
Conductor cross-section, max. AWG: AWG 10.
Conductor cross-section, min. AWG: AWG 24.
Crimping range, max.: 6 mm².
Crimping range, min.: 0.25 mm².
Tool Data Crimping:
Wire end ferrules cross-section, max.: 6 mm².
Wire end ferrules cross-section, min.: 0.25 mm².
Crimping type/profile: Trapezoidal crimp.
